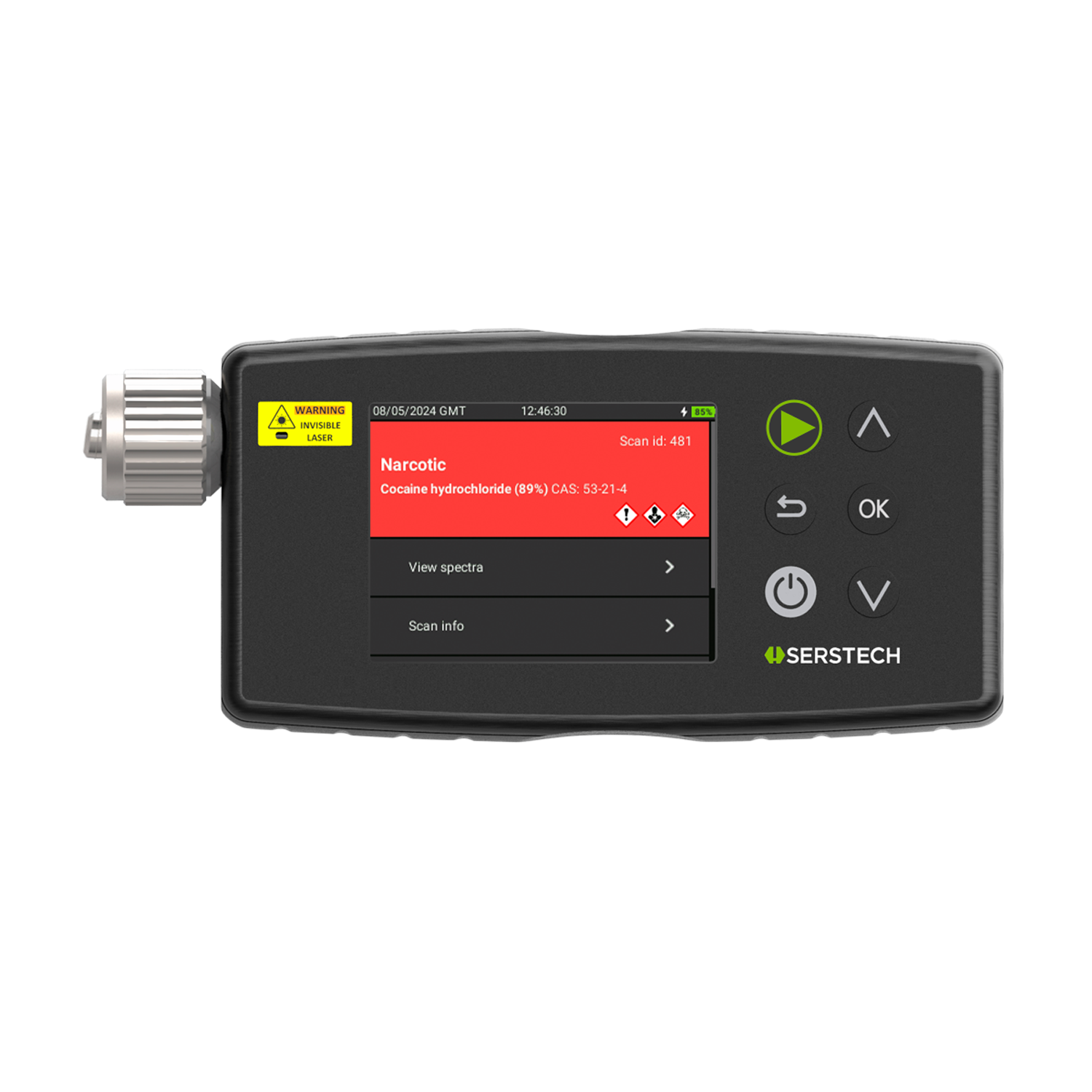

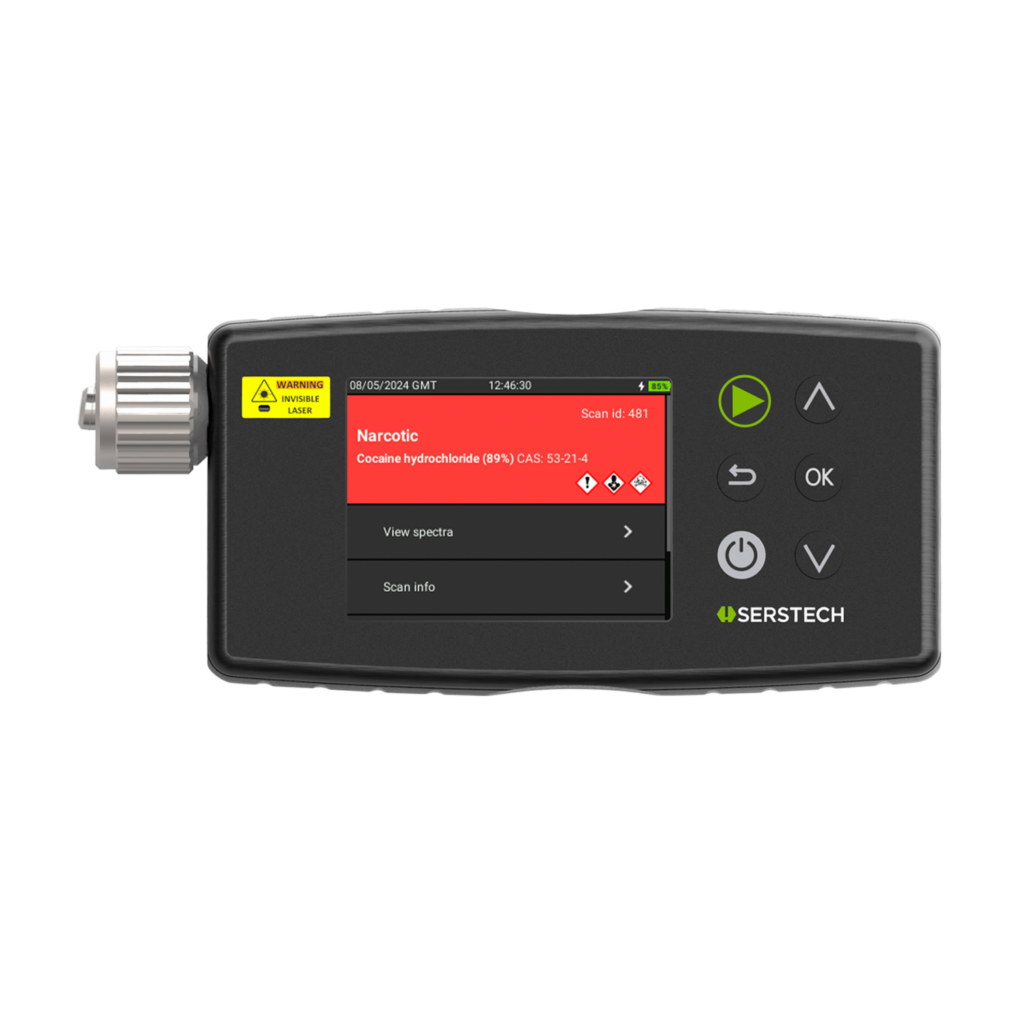

Serstech Arx mkII identifies unknown substances quickly and easily with high precision. The patented autofocus functionality removes the need for accessories and adapters. With 12 hours battery time, all you need to carry is the instrument itself, which fits easily in a pocket or small bag.
Ideal for:
- Law Enforcement
- Fire & HazMat
- Military Operations
- Correctional Facilities
- Customs & Border Patrol
Key Features:
- Autofocus Functionality
- Efficient Workflows
- ATAK Over Military Networks
- Patented SERS Capability
- Raman Reference Libraries
Request a quote from Safeware on the Serstech Arx mkII and see how you can save time and money using any of our national or local cooperative contracts, or through our federal and military procurement channels. Any state. Any time.
Autofocus Functionality
- The autofocus functionality of Serstech Arx mkII gives a precise result, by automatically obtaining the optimal focus point, within milliseconds. By detecting the container material and thickness, the focus point can be placed with high precision, and the content can be identified with minimum interference from the container. The result is an exact identification of the sample, regardless of how it is packaged.
Efficient Workflows
- Serstech Arx mkII can be operated with one hand and a single button, freeing up the other hand to handle the sample and reducing user errors. All measurements are automatically transferred to Serstech ChemDash when the instrument is connected to your PC.
Connectivity
- Connect wirelessly to ChemDash Mobile to add GPS position and pictures and to allow your instrument to use online resources. Connect to ChemDash Pro using Wi-Fi or the included USB cable.
ATAK over Military Networks
- Serstech Arx mkII has been developed with both military and civilian users in mind. Serstech Arx mkII is the first and only handheld Raman instrument that can communicate over military networks using TAK (Tactical Awareness Kit) and ISA.
All Necessary Libraries, including Biotoxins
- Serstech develops its own Raman reference libraries to meet the highest possible quality standards. Serstech’s chemists are expanding our reference libraries and updates are provided every quarter. The latest addition to the set of libraries are biotoxins, which are commonly needed by HazMat and CBRN teams.
Five Years’ Warranty Included
- All Serstech instruments include a five-year warranty, which ensures that your investment in modern technology is well protected.
Patented SERS Capability
- Serstech Arx mkII can be enhanced with the optional SERS capability, which brings the detection limit down to 200ppm. Read more about the Serstech SERS kit here.
Technical Specifications
| Ballistics | |
|---|---|
|
Instrument Type |
Handheld Raman Spectrometer |
|
Laser Excitation Wavelength |
785nm |
|
Laser Output Power |
3 levels, max 300mW |
|
Max Spectral Range |
400 cm-1 to 2 300 cm-1 |
|
Autofocus |
Serstech SharpEyeTM technology (0-4mm) |
|
Spectral Resolution |
8-10 cm-1 |
|
Detector Type |
Linear CCD Array |
|
Display |
3.5” Transflective TFT with LED backlight |
|
Memory |
100,000 measurements (16 GB) |
|
Data Formats |
.txt, .csv, .jcamp |
|
Connectivity |
USB C, Wi-Fi |
|
Battery |
Rechargeable – more than 8 hours of typical use |
|
Weight |
590 g (1.3 lb) |
|
Size |
149 mm x 83 mm x 28 mm (5.9 x 3.3 x 1.1”) |
|
Operating Temperature |
-20°C to +50°C (-4°F to 122°F) |
|
Storage Temperature |
-30°C to +50°C (-22°F to 122°F) |
|
Included Accessories |
Vial holder, 90° angle adapter, watertight case, protective cap with calibration target, sample vials, USB C cable, AC Adapter 5 VDC/1 A USB for Charging |
|
Optional Accessories |
SERS kit to identify e.g. heroin and low concetration samples |
|
Start-up Time |
Less than 20 sec. in room temperature |
|
Scan Time |
Most substances less than 10 sec. |
|
Exposure |
Auto-exposure or manual exposure, 0.001 – 60 seconds. |
|
Libraries Provided |
Explosives, incl. precursors; Narcotics incl. cutting agents, masking agents & precursors; Chemical Warfare Agents, incl. simu-lants; Hazardous materials, incl. toxic industrial chemicals; Pharmaceuticals with a wide range of active pharmaceutical ingredients. Total number of substances is more than 14,000. |
|
Warranty |
1 year. Additional warranty optional. |
|
MTBF |
50,000 h |
|
Relative Humidity |
5-90% |
|
Approvals |
CE, IEC 60529 IP67, MIL-STD-810G 514.6 (vibration), MIL-STD-810G 516.6 (functional shock), Title 21 CFR Part 11 compliant (Instrument and ChemDash) |
|
Supported Languages |
Chinese, Danish, English, French, German, Indonesian, Italian, Japanese, Korean, Polish, Russian, Spanish, Swedish and Turkish. |
|
Software Included |
ChemDash 2 Lite |
|
Type of Substances |
Solid, liquids, powders and tablets. |
|
Mixture Analysis |
Yes |
|
Delay Function |
Yes, 1 second to 15 minutes. |
|
Additional Features |
User authorization, event logging, scan time delay, user-defined libraries, user-added substances. |
