A purpose-built armored ATV that provides revolutionized protection… speed, agility, offensive maneuverability, defensive prowess, and the ability to stop large-round weapons.
Ideal for:
- Law Enforcement
- Federal Government Agencies
- Military Operations
- Correctional Facilities
- Private Security
Key Features:
-
NIJ III/ CEN B-6 Capable Material - UL-5 Rated Glass
- 360° Ballistic Protection
- Replaceable Ballistic Panels
- Designed to ROP Standards
Request a quote from Safeware on the LD-1 armored ATV and see how you can save time and money using any of our national or local cooperative contracts, or through our federal and military procurement channels. Any state. Any time.

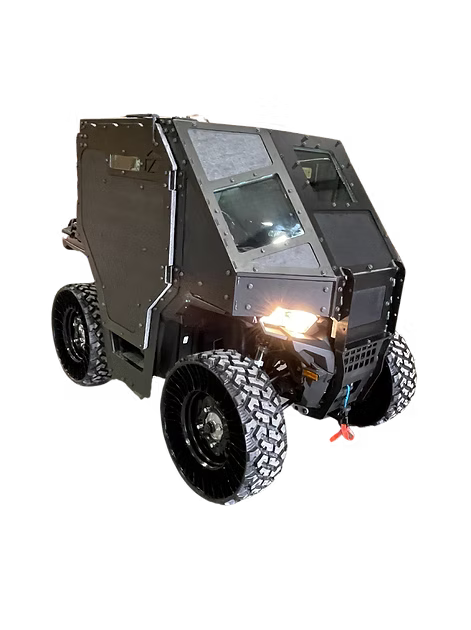

Made in the USA and designed and built in Indiana, the LD-1 is a lightweight ballistic surround shield for the Polaris Sportsman 850 ATV. While maintaining the ATV’s inherent maneuverability, the LD-1 utilizes NIJ III rated ballistic panels that can stop up to a 7.62x51mm round. It is fully capable in all terrain, both interior and exterior, to offer unprecedented access in spaces where a BearCat or MRAP cannot go. And unrivaled ballistic protection that cannot be accomplished with the motorcycles, bicycles, golf carts, or squad cars currently utilized by law enforcement agencies.
Who & Why
- Law enforcement agencies are able to leverage the superior protection and mobility of the LD-1 armored ATV for a multitude of scenarios ranging from active shooter responses, perimeter patrols, warrant services, and transport of equipment, supplies, or injured individuals.
LD-1 Kit Construction
- High tensile laser cut steel exoskeleton treated with industrial grade powdercoat paint (multiple colors available).
- Lightweight ballistic panels and ballistic glass are individually replaceable.
- Modular design for convenient maintenance and part replacement.
- MOLLE panels, T-bar with rear hand straps, and fire suppression.
- Optional accessories: Michelin X Tweels and Door Extensions.
Features and Benefits
Ballistic Surround Shield
-
NIJ III/ CEN B-6 capable material (up to 7.62x51 rounds) - UL-5 rated glass (multi-shot, AR-15/AK-47 rounds)
- 360° ballistic protection for operator
- Up to 120 inches (305 cm) of cover for additional personnel with doors open
- Replaceable ballistic panels are NIJ 0108.01 Compliant
- Kit not permanently affixed to the ATV
- No limitations on the Polaris Sportsman 850 Premium ATV
- Maintains essential speed and maneuverability
- Deployable in tight indoor spaces
- Capable in all outdoor terrain
- Designed to ROP standards
Technical Specifications
| Ballistics | |
|---|---|
| Material | NIJ III / CEN B-6 material |
| Glass | UL-5 rated glass |
| Frame | AR500 steel seams |
| Panels | Ballistic panels and glass are individually replaceable |
| Features | |
|---|---|
| Doors | NIJ III / CEN B-6 material |
| Panels | UL-5 rated glass |
| Straps | AR500 steel seams |
| Suppression | Fire suppression |
| Integration | Integrated barrel rests on top and sides of the doors |
| Rails | Top and front rail with accessory mounting capability |
| Part Replacement | Modular design for convenient maintenance and part replacement |
| Mounting | Mounted with no permanent modifications to the ATV |
| Maneuverability | |
|---|---|
| Length | 84.5 in / 215 cm |
| Width | 52 in / 132 cm |
| Height | 64.25 in / 163 cm |
| Weight | 1,316 lb / 597 kg |
| Turn Radius | 84 in / 213 cm |
| Ground Clearance | 9.5 in / 24 cm |
| Tow Capacity | 1500 lb / 680 kg |
| Winch Capacity | 3,500 lb / 1,588 kg |
| Wheelbase | 53 in / 134.6 cm |
| Accessories | |
|---|---|
| Tires | Michelin X-Tweels – airless tires |
| Doors | Door Extensions (NIJ IIIA) |
| Maintenance | Maintenance tool kit |
| Training | LD-1 Operator Training |

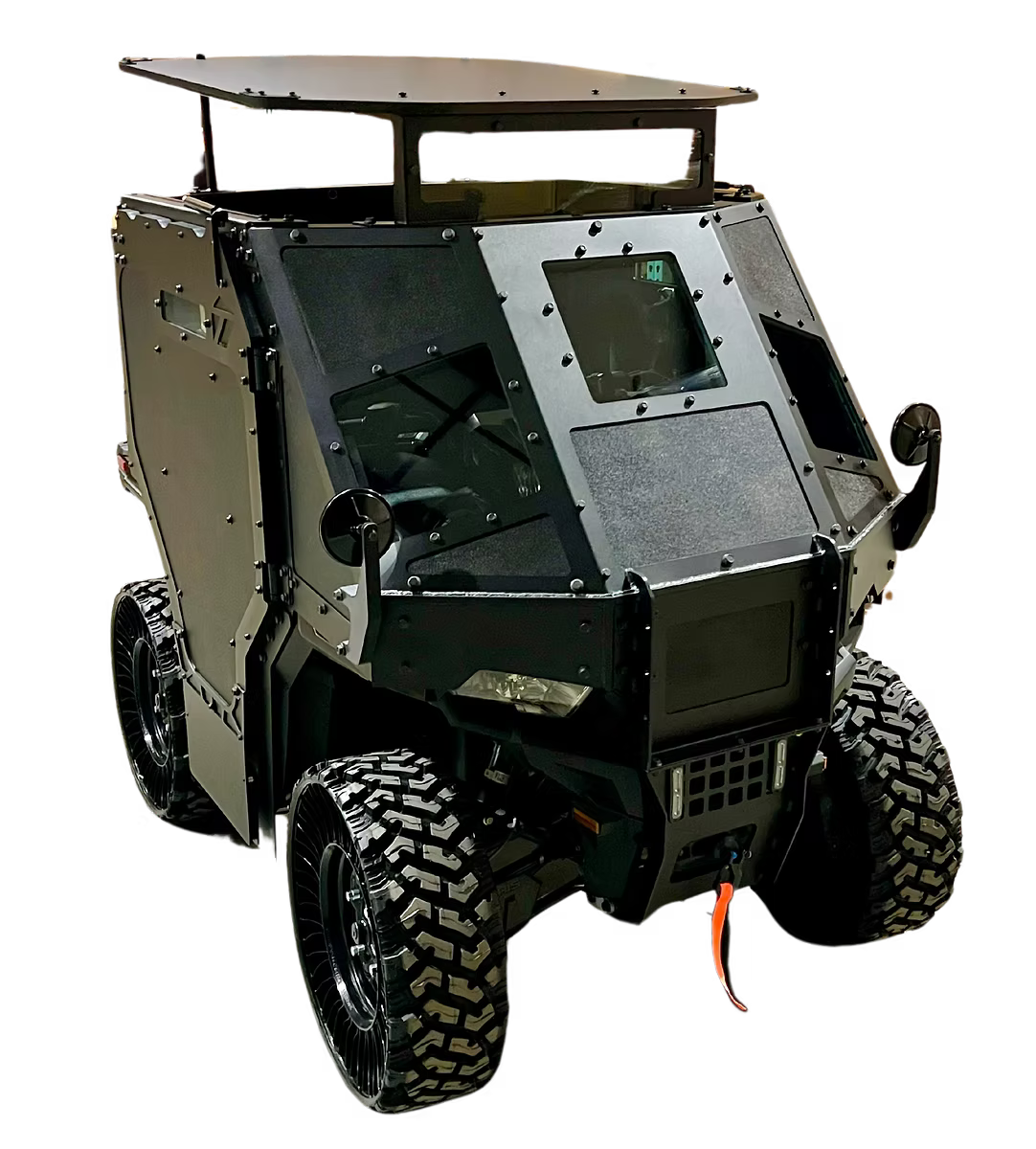

| Roof Option A | Ballistic Roof (adds 11.5 in / 29.2 cm to height) |
| Roof Option B | Non-Ballistic Roof |
| Window | Front Window Extension (req for roof accessory) |
| Utility | Rear Utility Panel |
Use Cases
Specification Sheet
RELATED ITEMS

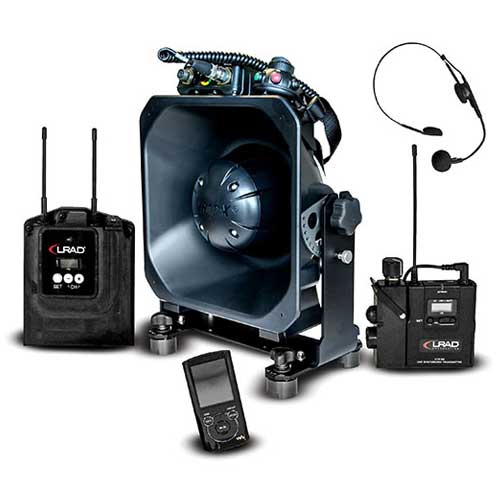

Live or pre-recorded voice messages optimized for human hearing, ensuring intelligible communication even in noisy environments.
