Indian Springs Kit “A” is a trusted, DOT-approved emergency solution built to rapidly and safely stop chlorine leaks on 100- and 150-lb cylinders. Engineered for fast deployment and dependable performance, it empowers responders and facility teams to contain hazards, protect lives, and restore control when every second counts.
Ideal for:
- Fire & Rescue
- CBRNE & HazMat
- Federal Government Agencies
- Military Operations
- Industrial Facilities
New Features:
- Hood and Yoke are Integrated Into One Easy to Use Unit
- Lighter and Stronger Chain
- Enhanced Gasket Design to Resist Roll-Out
- More Stable, Flat, Adjustable Base That Eliminates the Ramp
- Hood is Backwards Compatible with Gasket and Chain & Base Assembly
Request a quote from Safeware on the Indian Springs Kit “A” and see how you can save time and money using any of our national or local cooperative contracts, or through our federal and military procurement channels. Any state. Any time.
Description
The Indian Springs Kit “A” (Device 1) is the only US DOT approved capping kit that can be applied to a leaking chlorine cylinder and shipped over the road legally*. FOR LOW PRESSURE CYLINDERS ONLY < 150 PSI. The Indian Springs Kit “A” is manufactured to the design specifications of the Chlorine Institute. The Indian Springs Kit “A” contains devices to stop leaks at the valve, fusible plug, and in the side walls of chlorine 100 & 150 lb. cylinders which conform to specification DOT 3A480. Two instruction booklets explaining the application of each device are included.
Emergency Kit "A" Features

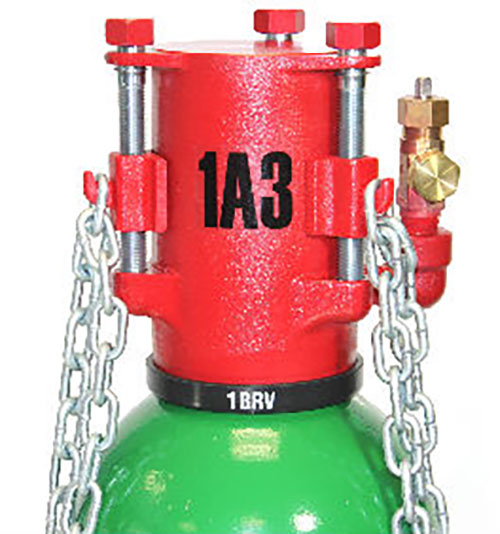

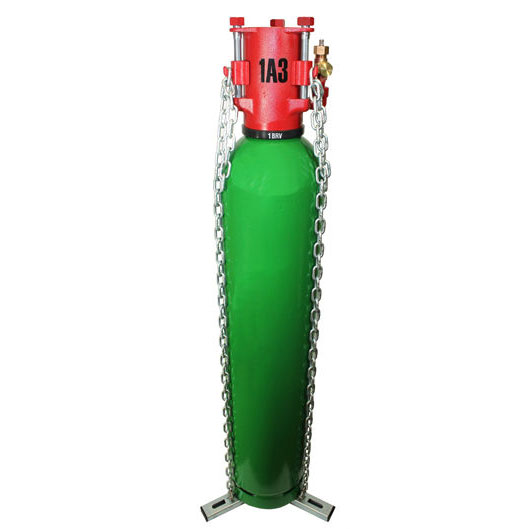

- Device #1: designed to contain leaks in and around the cylinder valve.
- Device #2: a clamping device to seal leaks in and around the cylinder valve fusible plug.
- Device #8: a patching device designed for sealing leaks in the cylinder side wall.

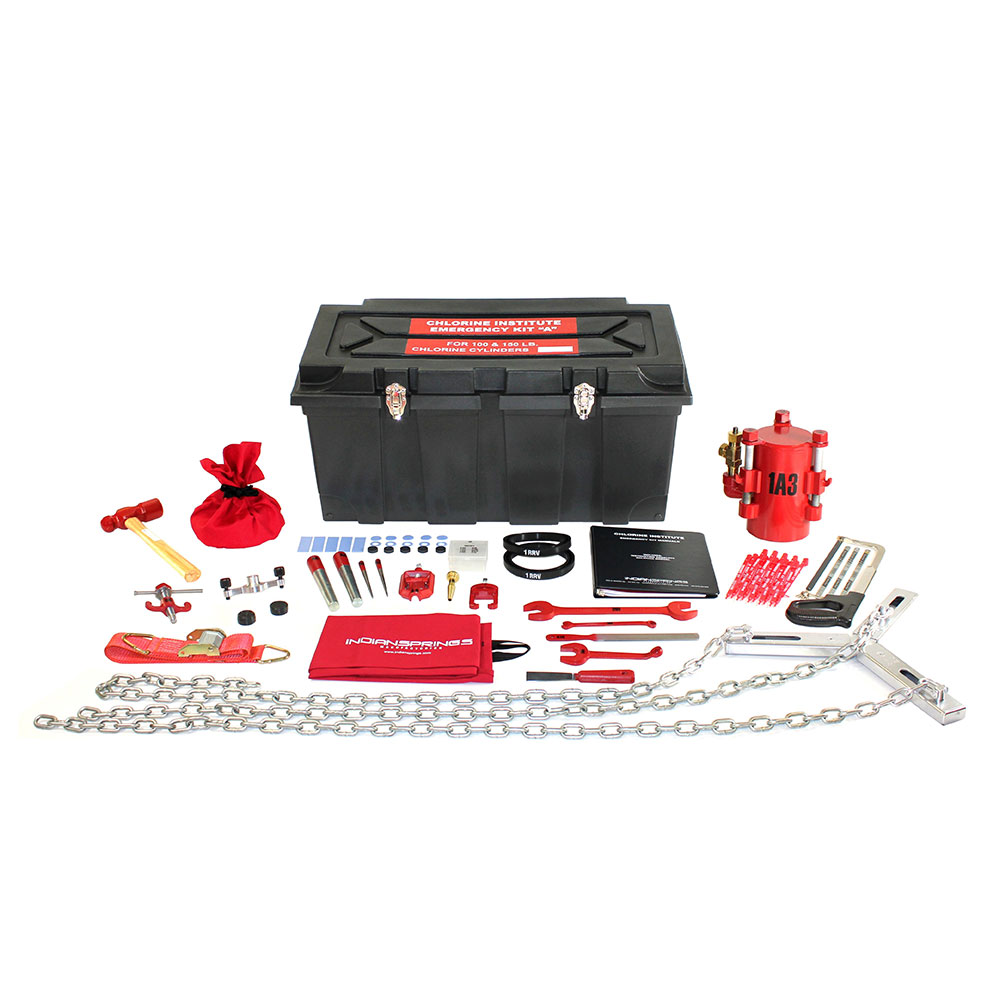

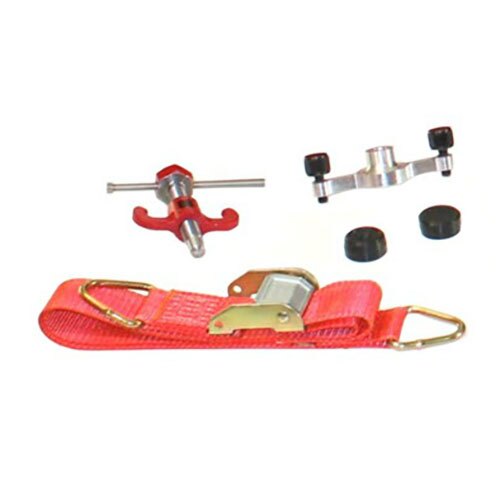

- Kit A also includes a variety of hand tools, inspection seals and additional sealing devices.
- All items are labeled with a part number, color coded red and stored inside a durable polyethylene tool box.
- The Chlorine Institute Recovery Vessel can also be used to encapsulate a leaking cylinder and shipped.
Technical Specifications
| Part Number | Name | Quantity/Kit |
|---|---|---|
|
1A3 |
Hood Assembly, with (1V) Vent Valve & 1K2 Screws(3) |
1 |
|
1BRV |
Gasket, Molded Viton**, 5-7/8 OD x 4-5/8 ID x 3/16 wal |
2 |
|
1EFP1 |
Base Assembly with Chains |
1 |
|
2 |
Clamp Assembly (2A,2C,2D) |
1 |
|
2B |
Gasket, Garlock 3000, 15/16 dia. x 1/16 |
5 |
|
2BB |
Gasket, Garlock 3000, 1”x 3” |
5 |
|
8S |
Strap |
1 |
|
8B |
Yoke |
1 |
|
8C1 |
Cap Screw |
1 |
|
8D1 |
Steel Patch |
1 |
|
8GV |
Gasket,Molded Viton**, 1-1/2” OD x 3/4” thick Button |
2 |
|
200A |
Wrench, 3/8 sq. box, 1-1/4 open end 7-1/4″ |
1 |
|
201 |
Wrench, straight open end, 1-1/4 x 1-1/8 x 12-1/8 |
1 |
|
203 |
Wrench, combination, 7/16 x 7-1/4” |
1 |
|
A-1 |
Hammer, Machinist 3 lb. |
1 |
|
A-2 |
Hacksaw, 10″, and 3 blades |
1 |
|
A-3 |
Drift Pin, 5/32 x 1/2 x 6 |
2 |
|
A-4 |
Drift Pin, 7/8 x 1-1/4 x 8 |
2 |
|
A-5 |
Ring, vent valve packing, 7/8 OD x 15/32 ID x 1/4 sq. |
5 |
|
A-6 |
Kit Box Seals |
15 |
|
A-7 |
Gasket Sack |
1 |
|
A-8 |
Paint Scraper, 1-1/4 blade |
1 |
|
A-9 |
Valve Yoke |
1 |
|
A-10 |
Valve Adapter (820-hose) |
1 |
|
A-12 |
Washer, valve outlet, 15/16 OD x 9/16 ID 1/16 |
5 |
|
A-13 |
Plastic Box |
1 |
|
A-14 |
file, 8″ |
1 |
|
144 |
Toll Roll |
1 |
|
151A |
Kit Box, 35 x 13-3/4 x 14-1/4 |
1 |
|
|
Instruction Booklet |
2 |
|
|
Chlorine Manual |
1 |
|
|
Parts List |
1 |
Specification Sheet
RELATED ITEMS
Provides reliable, real-time detection and monitoring of single hazardous gases.
Continuously monitors for multiple hazardous gases simultaneously, ensuring comprehensive protection.
Provides rugged, portable monitoring of up to 8 gases for reliable, long-term area hazard detection in challenging environments.
Indian Springs Kit "A"
Safeware is a nationally trusted provider of safety and security solutions, proudly serving first responders, federal government agencies, and select military installations and operations. Our nationwide team is dedicated to providing fast, reliable service and support tailored to your mission.
Through multiple national cooperative contracts and a wide range of state and local agreements, we simplify the procurement process so you can skip the bidding process and get the equipment you need, fast and cost-effectively.
Request a quote today and discover why emergency response professionals nationwide rely on Safeware as their go-to source for dependable, mission-ready solutions.
What is the Indian Springs Kit A?
The Indian Springs Kit A is a chlorine leak containment kit designed to stop leaks from valves, fusible plugs, and side walls of 100 and 150 lb chlorine cylinders conforming to US DOT specifications. It is manufactured to the design specifications of the Chlorine Institute and produced by Indian Springs.
Which chlorine cylinders is Kit A compatible with?
Kit A is compatible with low pressure chlorine cylinders rated less than 150 PSI and conforming to US DOT 3A480 and 3AA480 specifications, including 100 and 150 lb capacity cylinders.
What types of chlorine leaks can Indian Springs Kit A stop?
Kit A can address leaks at the valve area, fusible plugs, and small sidewall leaks on chlorine cylinders when applied correctly by trained personnel.
What devices are included in Kit A and what does each device do?
Kit A includes multiple devices: a valve capping device, fusible plug clamps, and a patching device for sidewall leaks, along with hand tools, gaskets, seals, and instructions. Each device targets a specific leak location.
Is Emergency Kit A approved by the U.S. Department of Transportation (DOT)?
Yes. Kit A is the only DOT-approved capping device that allows a leaking chlorine cylinder to be legally transported under specific regulatory conditions once the leak is secured.
Who is authorized or trained to use the Indian Springs Kit A?
Kit A should only be used by trained hazardous materials responders or facility personnel who are experienced in chlorine handling and emergency response procedures.
What personal protective equipment (PPE) is required when using Kit A?
Proper PPE includes chemical-resistant clothing, gloves, eye protection, and appropriate respiratory protection such as SCBA, depending on chlorine concentration and exposure risk.
Can the Indian Springs Kit A be used to transport a leaking chlorine cylinder?
Yes, when applied correctly, Kit A allows a leaking cylinder to be secured and transported in compliance with DOT regulations for further handling or disposal.
Is Kit A compatible with cylinders that have protective caps or oversized neck rings?
Yes. Kit A is designed to accommodate modern chlorine cylinder designs, including those with protective caps and larger neck rings.
Can Indian Springs Kit A be used on gases other than chlorine?
No. Kit A is specifically designed for chlorine cylinders and should not be used with other gases unless explicitly approved by the manufacturer and regulatory authorities.
