Fotokite Sigma – Rooftop

Fotokite Sigma – Rooftop

Brand: Fotokite
Fotokite - Rooftop Configuration

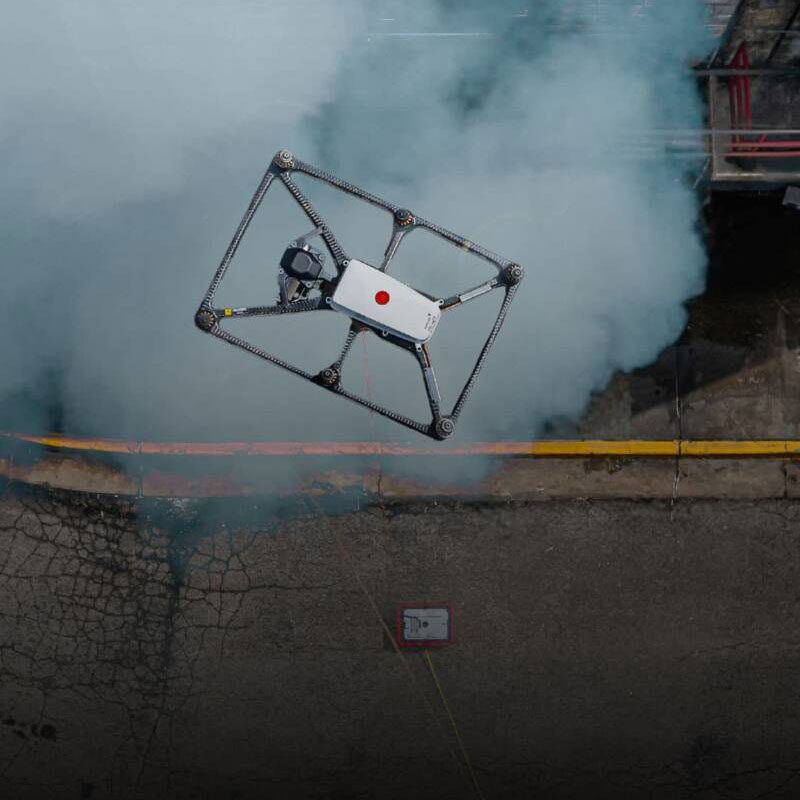

Fotokite Sigma tethered drone flyong above smoke
Fotokite - Livestream

Actively Tethered Drones for Elevated Situational Awareness

Fotokite Sigma Rooftop Box actively tethered drone for emergency response provides public safety teams 24+ hours of elevated situational awareness at the press of a button while.

Key Features:

  • Transportable
  • 24+ Hours of Surveillance
  • Advanced Camera w/ 1080p Resolution
  • Stream to Any Device
  • Live Color and Thermal Viewing
  • Up to 50 Viewers

Ideal For:

  • Law Enforcement
  • Fire / HazMat
  • Event Security
  • Dept. of Transportation
  • Emergency Management

Get more information or request a quote on Fotokite solutions from Safeware.

By submitting a request for quote, you are agreeing to allow emails and contact from Safeware, Inc.

Share This:

  • Description
  • Features
  • Specifications
  • Downloads

Fotokite Sigma provides public safety teams with 24+ hours of mission-critical situational awareness from elevated perspectives. Fotokite’s actively tethered drones conserve personnel by launching, flying, and landing with the single push of a button; no piloting required, allowing responders to make information-driven decisions through a simple, straightforward interface.

Features and Benefits

Kite

  • The Kite is built with an ultra-light 1.2 kg / 2.6 lbs carbon fiber frame providing a robust, durable, and transport-ready solution. It is also equipped with the emergency power supply for safe landing, in case ground power is disrupted.

Ground Station

  • The Ground Station is both a power supply for the Kite, as well as a high-bandwidth data connection for video and controls communication. Built-in Wi-Fi & 4G LTE modems are included for on-site and remote video streaming capabilities.

Tablet

  • A ruggedized and daylight-readable tablet runs the Fotokite Live app, which allows operators to control the Kite altitude and camera heading.

Video streaming

  • Real-time video is streamed to the tablet from the Ground Station, and made available remotely via a 4G LTE modem. Thermal video resolution is 320 x 240 / 27 fps. Radiometric feature can measure absolute temperature in range -40°C – 400°C, accuracy ± 5%. Low light RGB video resolution is 1920 x 1080 / 30 fps / 12 MP / 16x Hybrid Zoom (0.5x widest – 16x most zoomed).

IP55 Rated

  • Proven performance and reliability in everyday weather conditions, day or night. Fotokite Sigma is IP55 rated and operates regularly through rain, snow, and wind, allowing for uninterrupted mission feed.

45 m / 150 ft Max Height

  • Situational awareness is delivered down the tether from altitudes of up to 45 m / 150 ft. The system includes automatic altitude reduction if the wind surpasses the threshold to operate safely.

Advanced Cameras

  • Dual infrared and low-light RGB video is securely delivered down the tether. Thermal video resolution is 320 x 240 / 27 fps. Radiometric feature can measure absolute temperature in range -40°C – 400°C, accuracy ± 5%. Low light RGB video resolution is 1920 x 1080 / 30 fps / 12 MP /16x Hybrid Zoom (0.5x widest – 16x most zoomed).

Robust Wind Performance & Intelligent Redundancy

  • Made for performance even in harsh conditions, the Fotokite Sigma has been operated in winds up to 25 mph (40 km/h). For safety and peace of mind, Fotokite Sigma is built with automatic detection of hazardous wind conditions and will automatically adjust height down to safe operating altitudes so station-keeping can be maintained without the need to monitor or pilot the system.
Flight Time 24 hours continuous.
Safety & Regulations Compliant No piloting necessary; single button launch and land, fully autonomous flight.
Weather Rating IP55 Environmental rating, ready to operate in rain, snow, and wind. Maximum Operating Temperature: 14°F to 104°F / -10°C to 40°C.
Range Max height of 150 ft (45 m) from the Ground Station.
LTE Modem & Video Streaming Ethernet + WPA2 encrypted WiFi access point for live video streaming, plus integrated LTE Modem to stream live video remotely for mutual aid and remote incident command.
Cameras Radiometric Thermal Camera resolution of 240p (320 x 240) / 27 fps. Measures absolute temperature from -40°F to 752°F / -40°C to 400°C, accuracy ± 5%. Low-light RGB Camera resolution: 12 MP / 32x Zoom (Blended 10x Optical + Digital Zoom, 0.5x to 16x). RGB stream resolution of 1080p (1920 x 1080) / 30 fps.
Flight Control Fotokite Autopilot with no GPS dependency.
Kite 2.6 lbs (1.2 kg) Take-Off weight, weather sealed Carbon fiber & advanced composites.
Ground Station 46 lbs (21 kg) single carry Mobile Case configuration size: 25 x 19 x 12.19 in (63.5 x 48.3 x 31 cm).
