Confined Space Tripod kit for entry and rescue.
Complete Safety System

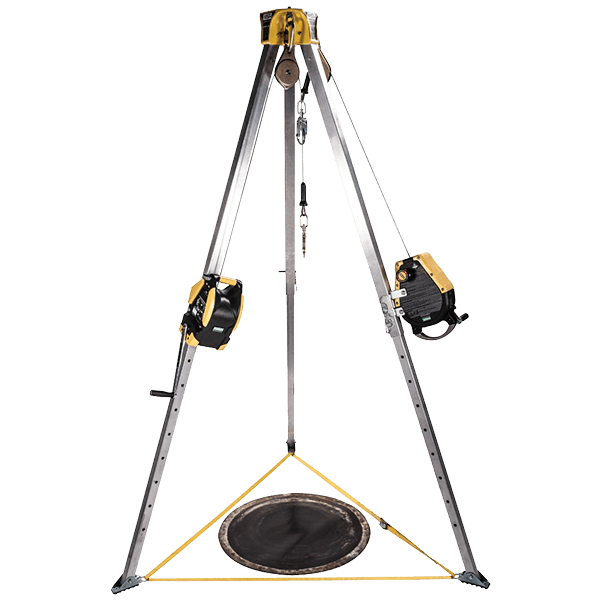

MSA tripods make confined space entry with vertical descent easy. The Workman Tripod features internal leg-locking mechanism, maximum height indicator on tripod legs, cut-resistant leg pin retention chains, recessed product labels, reduced weight, and integral carry strap. The Workman Tripod can be set up and dismantled without use of tools.
Part Numbers:
CSE Kit – Silver
MSA 10163033
CSE Kit – Yellow
MSA 10174588
Workman Tripod
MSA 10102002
Steel Cable Winch, 65′
MSA 10147301
Steel Rescuer, 50′
MSA 10158178
Durable
A tripod must perform reliably within harsh conditions, and the Workman Tripod does. Built for durability, the unit features:
- Skid-resistant feet with built-in leg base support strap that improves stability and strengthens entire system.
- Cut-resistant pin retention chains to enable extended service life.
- Internal leg-locking mechanism prevents accidental disengagement during use and reduces possibility of damage to mechanism during use or while in storage.
Reliable
In addition to ease of use and durability, the Workman Tripod offers great versatility:
- Leg base support strap also serves as convenient carry strap.
- Tripod legs feature 4" incremental adjustments with easy-toinsert ball detent pins.
BUILT TO WORK WHEREVER YOU WORK

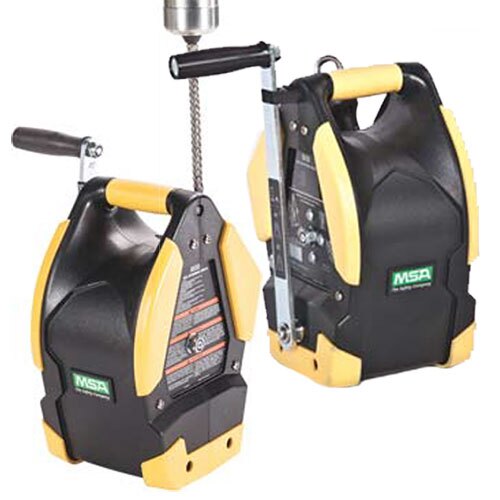

Workman Winch
The Workman Winch is rugged, versatile and economical for lifting, lowering and positioning of personnel and materials within confined space applications. Designed for maximum 400 lb. (181 kg) workload for personnel and 620 lb. (281 kg) for materials (20:1 design factor), the Workman Winch is built with tough thermoplastic housing to ensure high performance within the harshest environments. Winch offers integral, ergonomic carry grip and unique, foldable handle for simple storage. Patent-pending bracket design allows for easy, rapid assembly. environments. The Latchways Retrieval SRL also offers exceptionally-low cost of ownership.
- Maximum workload of 400 lbs. (181 kg) for personnel, 620 lbs. (281 kg) for materials
- Patent-pending bracket attachment for easy installation
- Ergonomic carry grip
- Foldable crank handle
- Includes integral RFID technology
- Includes self-locking swivel 36C snaphook
- ANSI Z359.1-compliant
Part Numbers:
Stainless Steel Cable – 65′
MSA 10147301
Galvanized Cable – 65′
MSA 10153757
Synthetic Rope – 65′
MSA 10148277

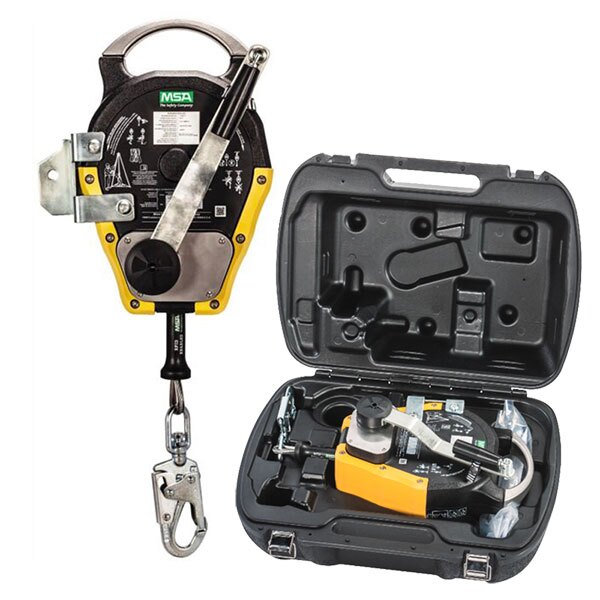

Workman Rescuer
Exclusive integral bracket uses existing tripod pin, resulting in fewer components to attach or become damaged or misplaced. Fall protection/retrieval mode knob simply pulls and rotates to activate. Use this device as a component of a confined space system for one application and as a standard self-retracting lanyard for another.
- Experienced and novice users will learn setup and operation quickly and effectively
- Comparable size and weight to competitive products
- Great for OGP turnarounds, construction, utilities, and other confined space applications
- Product label's QR code offers instant access to setup video and additional information
- User capacity up to 400 lbs. for personnel
- Stainless steel Ø 3/16" (5 mm) wire rope
- Integral mounting bracket
- Ergonomic, stainless steel carrying handle can also be used as anchorage connection point
- Built-in shock absorber
- Modular design
- Robust aluminum housing with thermoplastic bumpers
- Self-locking swivel snaphook with load indicator
- Stow-able, foldable crank handle
- RFID-enabled
- Meets OSHA regulations and ANSI Z359.14
Part Numbers:
ANSI, 50′ Steel Cable
MSA 10158178
CSA, 50′ Steel Cable
MSA 10158180
ANSI, 50′ Synthetic Rope
MSA 10159755

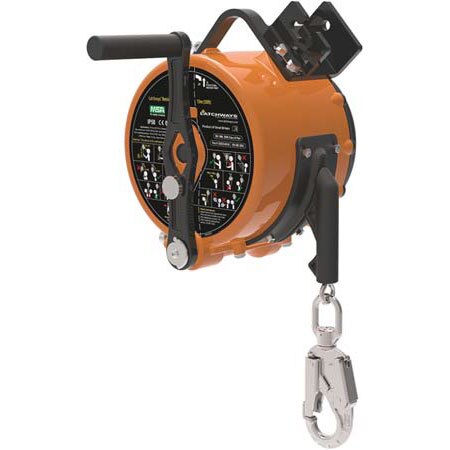

MSA Latchways® Retrieval SRL
Innovative and fail-safe self-retracting lifeline is IP58-rated and complete with retrieval winch. When connected to this device, a worker has reassuring continuous hands-free fall protection with unhindered mobility. Audible clicking of the Latchways Retrieval SRL indicates continuous correct functioning, even within the harshest of environments. The Latchways Retrieval SRL also offers exceptionally-low cost of ownership.
- User capacity up to 310 lbs. (140 kg) including tools
- 50 ft. (15 m), Ø 3/16” (Ø 5 mm) stainless steel cable
- Integral mounting bracket
- Constant Force® Technology frictionless energy-absorbing mechanism
- Full Contact™ locking pawls
- Modular design
- Ingress protection rating IP68
- Self-locking swivel snap hook with load indicator
- Meets EN, OSHA, ANSI, and CSA standards
Part Numbers:
OSHA, ANSI, CSA, 50′
MSA 62821-00US
