A full range of wireless personal single-gas monitors.
Ideal for:
- Fire & Rescue
- CBRNE & HazMat
- Federal Government Agencies
- Military Operations
- Industrial Facilities
Key Features:
- Alarm Status/Reading Wireless Access
- 3 Months of Continuous Data Logging
- Easy to Maintain & Calibrate
- Compact, Lightweight, & Rugged
- IP-54 (PID) & IP-65 (EC, LEL, & CO2) Protection Rating
Request a quote from Safeware on the ToxiRAE Pro and see how you can save time and money using any of our national or local cooperative contracts, or through our federal and military procurement channels. Any state. Any time.
Description

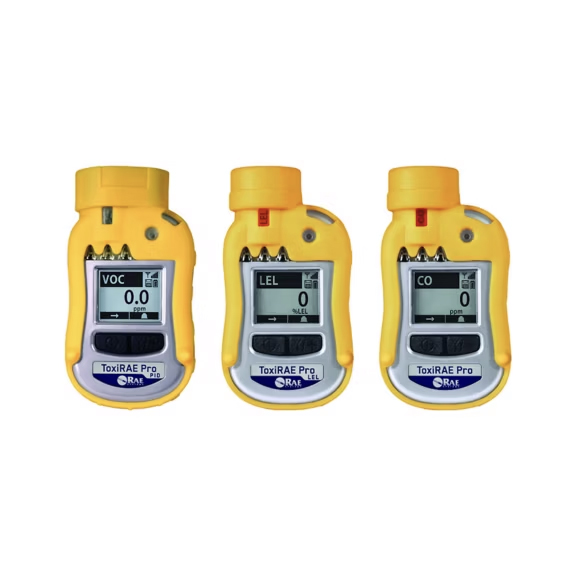

Streamline your plant-wide deployment with a family of instruments that offer similar user interface, calibration and maintenance routines, and accessories for easy interoperability for users, and cost savings on training. The ToxiRAE Pro family is the industry’s first and largest family of wireless, personal single-gas monitors that can reliably and accurately monitor a full range of common toxic industrial chemicals (TICs), volatile organic compounds (VOCs), combustible gases, carbon dioxide (CO2), and Oxygen (O2). When combined with ProRAE Guardian software, safety managers can easily view data in real time on all ToxiRAE Pro instruments, anytime, anywhere.
Features & Benefits
- Easy to maintain and calibrate
- Anytime, anywhere access to real-time instrument reading and alarm status with ProRAE Guardian Software or EchoView Portable Controller
- Five-way alarm notification — man down, and 4 instrument alarms
- Rugged, IP-54 (PID) and IP-65 (EC, LEL, and CO2) protection rating
- Compact and lightweight
- 3 months of continuous data logging
- Field-replaceable battery, filter, sensor, and PID fan
- Fully automated calibration with AutoRAE2
- Readily enables to communicate with Motorola MOTOTRBO
Technical Specifications
| Instrument Specifications | |
|---|---|
|
Weight |
7.76 oz (220 g) |
|
Dimensions |
H: 4.6 in (118 mm) W: 2.4 in (60 mm) D: 1.2 in (30 mm) |
|
Max Temperature |
131°F/55°C |
|
Alarm Type |
Audible (95dB)/Vibrating/Visual (Flashing Bright Red LEDs) |
|
Datalogging |
Continuous (3 Months)/Three-month capacity |
|
Display Readout |
Real-Time Reading of Gas Concentrations in ppm or mg/m3; Battery Status; Data Logging ON/OFF; Wireless ON/OFF and Reception Quality/STEL, TWA, and peak values |
|
Display Type |
Graphical LCD Display with White LED Backlighting |
|
User OptionsX |
Wireless remote alarm notification; audible (95 dB @ 30 cm) |
|
Sensors |
1 |
|
Wireless Technology |
MESH |
|
Humidity Range |
0 to 95% RH (Non-Condensing) |
|
Sensor Range |
NH3 (0-100ppm), CO (0-500ppm), Cl2 (0-50ppm), ClO2 (0-1ppm), ETO (0-500ppm), HCHO (0-10ppm), H2 (0-1000ppm), HCN (0-50ppm), H2S (0-100ppm), CH3-SH (0-10ppm), NO (0-250ppm), NO2 (0-20ppm), O2 (0-30%vol), PH3 (0-20ppm), SO2 (0-20ppm), HCl (0-15ppm), HF (0-10ppm) |
|
Extended Range |
0 to 1,000 ppm |
|
Calibration |
Automatic with AutoRAE 2 Test and Calibration System or Manual |
|
Sensor Mechanism |
Electrochemical Sensors |
|
Gas Type |
NH3, CO, Cl2, ClO2, ETO, HCHO, H2, HCN, H2S, CH3-SH, NO, NO2, O2, PH3, SO2, HCl, HF |
|
Communication and Data Download |
Data Download and Instrument Setup on PC via Charging and PC Communication Cradle/Data Download via AutoRAE 2 Automatic Test and Calibration System/Wireless Data and Status Transmission via Built-in RF Modem (Optional) |
|
Dust & Water Resistance |
IP65 |
|
Wireless Frequency |
ISM License-Free Band. IEEE 802.15.4 Sub 1 GHz |
|
Wireless Approvals |
CE R&TTE/FCC Part 15 |
|
Wireless Network |
Closed-Loop Network with the EchoView Host/ProRAE Guardian Real-Time Wireless Safety System |
|
Wireless Range |
ToxiRAE Pro to Mesh Router, EchoView Host, or Mesh Reader2 – 660 ft (200m)/ToxiRAE Pro to RAELink3 Mesh or RAELink3 Z1 Mesh Modems – 330 ft (100m) |
|
Battery Life |
30 Hours |
|
Keypad Type |
2 Buttons for Operation and Programming |
|
Sampling |
Diffusion |
|
EMI/RFI |
EMC Directive: 2004/108/EC |
|
Standards |
Class I, Division 1, Groups A, B, C, D, T4 |
|
Ingress Protection |
IP65 |
Specification Sheet
RELATED ITEMS
QRAE 3 monitors oxygen, combustibles, toxic gases for workers/responders in tough, hazardous environments.

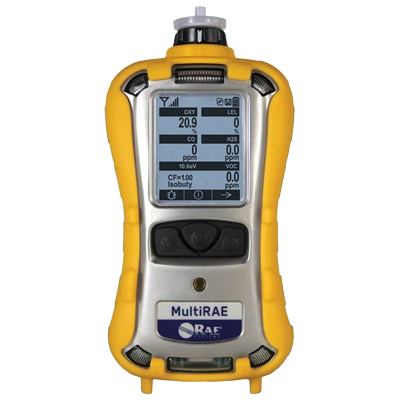

The MultiRAE Pro is a versatile, portable gas detector that monitors up to six hazardous gases simultaneously.
