DBI-SALA® Nano-Lok™ Self-Retracting Lifeline

Brand: 3M, 3M DBI SALA

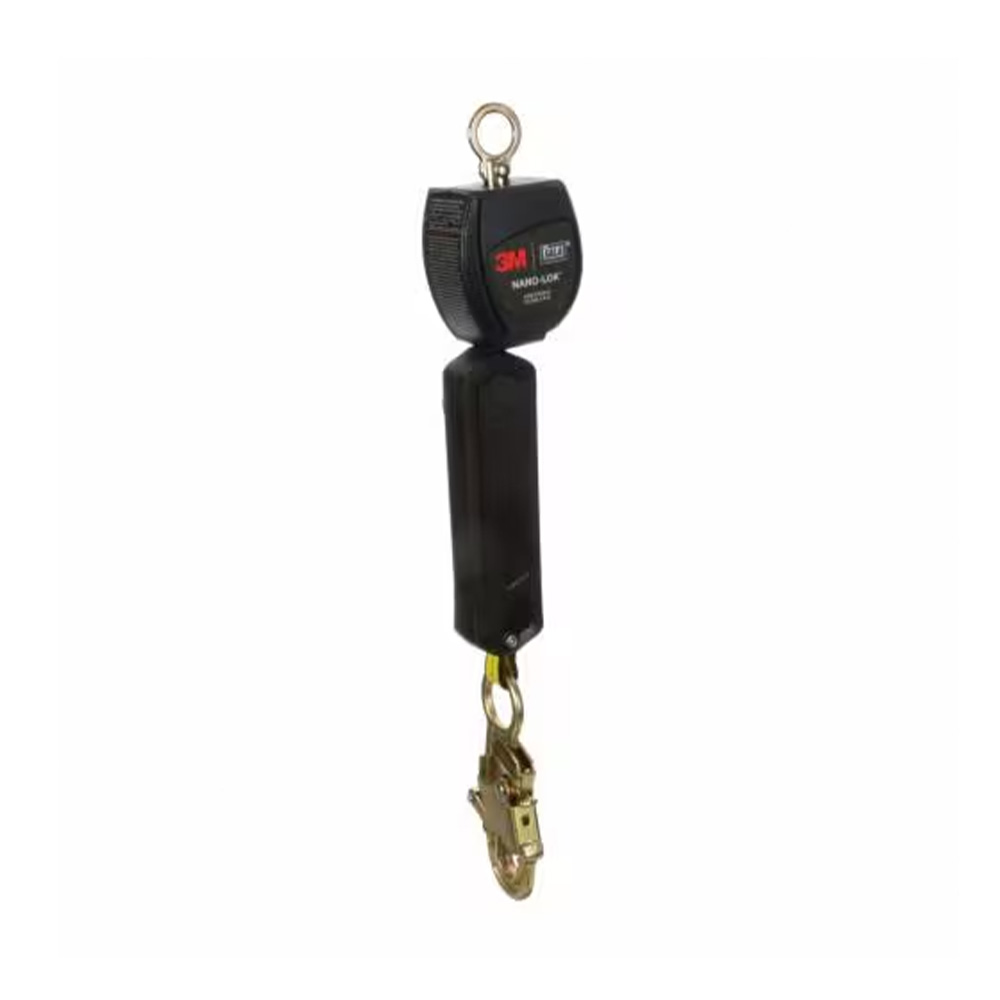

3M DBI-SALA Nano-Lok Self-Retracting Lifeline

Self-Retracting Lifeline

Stay protected at height with the 3M DBI SALA Nano Lok Self Retracting Lifeline, delivering mobility, quick activation, and reliable fall protection.

Key Features:

  •  Quick Activating Speed Sensing Brake System
  •  Built-In Connector for Direct Attachment to Harness
  •  High Capacity External Energy Absorber & Impact Indicator
  •  Swivelling Anchorage Loop
  •  Durable Thermoplastic Housing

Ideal For:

  • Industrial
  • Public Services
  • Search & Rescue
  • Confined Space Rescue
  • Fire

Get more information or request a quote on 3M solutions from Safeware.

By submitting a request for quote, you are agreeing to allow emails and contact from Safeware, Inc.

Share This:

  • Description
  • Features
  • Specifications

3M™ DBI-SALA® Nano-Lok™ Self-Retracting Lifeline is lightweight with a compact design and industrial-strength durability. 3M™ DBI-SALA® Nano-Lok™ Self-Retracting Lifeline offers versatility for many different industrial applications.

3M™ DBI-SALA® Nano-Lok™ Self-Retracting Lifeline is ideal for direct connection to most harnesses. Whether the application requires single or twin leg configurations, mounting to an overhead anchor, or connection directly to a harness, there are numerous models to choose from that suit almost any application. 3M™ DBI-SALA® Nano-Lok™ Self-Retracting Lifeline locks quickly stopping a fall within inches – providing more protection at low heights. These features are key safety improvements and provide the user with additional security on the job.

Highlights



  • Compact & lightweight design
  • Swivelling anchorage loop
  • RFID equipped and capatible with inventory management system
  • Quick activating speed sensing brake system
  • Built-in connector for direct attachment to harness
  • Available in multiple styles and configurations
  • Durable thermoplastic housing
  • High capacity external energy absorber and impact indicator
Details
Anchor Connection Type Cab-mount Bracket, Rebar Hook, Tie-back Snap Hook
Anchor Hook Material Zinc Plated Steel
Anchor Hook Material Steel & Stainless Steel
Average Arrest Force (Imperial) 1125 lbf (ANSI), 1125 lbf (OSHA up to 420 lb), 1125 lbf (OSHA 130 lb – 310 lb)
Average Arrest Force (Metric) 5 kN (ANSI), 5 kN (OSHA 130 lb – 310 lb)
Brands DBI-SALA®
Connected Safety ID Equipped Yes
Harness Connection Hook Material Zinc Plated Steel
Harness Connection Type Carabiner, Connector for Dorsal Attachment to Fixed D-ring Harnesses, None, Single Pin Connector
Housing Material Nylon Thermoplastic
Install Type Portable & Removable
Leg Count Single-Leg, Twin-Leg
Lifeline Connection Type Carabiner, Comfort Grip Hook, Rebar Snap Hook, Snap Hook, Swivel Snap Hook
Lifeline Hook Material Aluminum, Aluminum & Steel, Zinc Plated Steel
Lifeline Length (Imperial) 6 ft, 8 ft, 9 ft, 11 ft
Lifeline Length (Metric) 1.8 m, 2.4 m, 2.7 m, 3.3 m
Lifeline Material Fire Resistant Web, Web
Maximum Arrest Force (Imperial) 1800 lbf (ANSI), 1800 lbf (OSHA up to 420 lb), 1800 lbf (OSHA 130 lb – 310 lb)
Maximum Arrest Force (Metric) 8 kN (ANSI), 8 kN (OSHA up to 420 lb), 8 kN (OSHA 130 lb – 310 lb)
Maximum Number of Users One
Mounting Type Cab-Mount, Direct to Harness Back, Overhead Anchor Point
Product Color Black, Blue
Product Series Arc Flash Quick Connect Self-retracting Lifeline, Arc Flash Tie-back Quick Connect Self-retracting Lifeline (Web), Arc Flash Tie-back Self-retracting Lifeline (Web), Arc Flash Tie-back Twin-leg Quick Connect Self-retracting Lifeline (Web), Arc Flash Twin-leg Quick Connect Self-retracting Lifeline (Web), Order Picker Self-retracting Lifeline (Web), Quick Connect Self-retracting Lifeline (Web), Self Retracting Lifeline, Self Retracting Lifeline – Web, Tie-Back Quick Connect Self Retracting Lifeline – Web, Tie-Back Quick Connect Self Retracting Lifeline – Web – For Hot Work Use, Tie-Back Self Retracting Lifeline – Web, Tie-Back Self Retracting Lifeline – Web – For Hot Work Use, Tie-Back Twin-Leg Quick Connect Self Retracting Lifeline – Web, Tie-Back Twin-Leg Quick Connect Self Retracting Lifeline – Web – For Hot Work Use, Twin-Leg Quick Connect Self Retracting Lifeline – Web
Recommended Application Assembly, Cleaning, Demolition, Electrical, General Industrial, Ladder Climbing, Maintenance, Remediation
Recommended Industry Automotive, Construction, General Industrial, General Industry, General Manufacturing, Industrial, Maintenance, Manufacturing, Metal Fabrication, Metal Production & Fabrication, Military Maintenance, Repair & Operation (MRO), Mining, Oil & Gas, Pharmaceutical, Renewable, Transportation, Utilities, Utility, Warehousing, Wind Energy
Specifications Met ANSI Class Level 1, ANSI A10.32, ANSI Z359.1, ANSI Z359.14, ANSI/ASSP Z359.14-2021, ASTM F887, OSHA 1910.66, OSHA 1926.502, 29 CFR OSHA 1910.140, 29 CFR OSHA 1926.502
Weight (Imperial) 2.5 lb, 2.6 lb, 2.7 lb, 2.8 lb, 2.9 lb, 3 lb, 3.6 lb, 3.7 lb, 3.9 lb, 5.5 lb, 5.6 lb, 7.2 lb, 7.6 lb
Weight Capacity 420 lbs. (190 kg)



Dimensions and Classifications
Net Weight (Imperial) 1.846 lb, 1.9 lb, 2.038 lb, 2.161 lb, 2.27 lb, 2.353 lb, 2.43 lb, 2.585 lb, 2.726 lb, 2.745 lb, 2.76 lb, 2.767 lb, 2.8 lb, 2.927 lb, 3.041 lb, 3.111 lb, 3.2 lb, 3.216 lb, 3.426 lb, 3.5 lb, 3.531 lb, 3.6 lb, 3.7 lb, 3.9 lb, 4.007 lb, 4.391 lb, 4.545 lb, 4.855 lb, 5.219 lb, 5.7 lb, 5.767 lb, 6.207 lb, 6.5 lb, 6.537 lb, 6.747 lb, 6.9 lb, 7.2 lb, 7.4 lb, 7.6 lb, 11.23 lb
Net Weight (Metric) 0.837 kg, 0.86 kg, 0.924 kg, 0.98 kg, 1.03 kg, 1.067 kg, 1.102 kg, 1.173 kg, 1.236 kg, 1.24 kg, 1.245 kg, 1.255 kg, 1.27 kg, 1.328 kg, 1.379 kg, 1.411 kg, 1.45 kg, 1.459 kg, 1.554 kg, 1.59 kg, 1.602 kg, 1.63 kg, 1.68 kg, 1.77 kg, 1.818 kg, 1.992 kg, 2.061 kg, 2.202 kg, 2.367 kg, 2.59 kg, 2.616 kg, 2.815 kg, 2.95 kg, 2.965 kg, 3.06 kg, 3.13 kg, 3.27 kg, 3.36 kg, 3.45 kg, 5.08 kg
Overall Length (Imperial) 6 ft, 8 ft, 9 ft, 11 ft
Overall Length (Metric) 1.83 m, 2.4 m
Weight Capacity (Imperial) 420 lb
Weight Capacity (Metric) 190 kg
Working Length (Imperial) 4 , 5.9
Working Length (Metric) 1.22 , 1.76
