Avon EZAir
Avon EZAir
CBRN Breath Assist Powered Unit
Key Features:
- Less breathing resistance
- Cooling sensation
- One size lightweight and flexible hose
- Increased operational time
- Hot swap battery allows for rapid exchange
Ideal For:
- Law Enforcement
- Federal Government
- Military
- HazMat
- Counter Terrorism Operations
- Post-Fire Clean Up
Get more information or request a quote on AVON Protection solutions from Safeware.
- Description
- Features
- Specifications
- Downloads

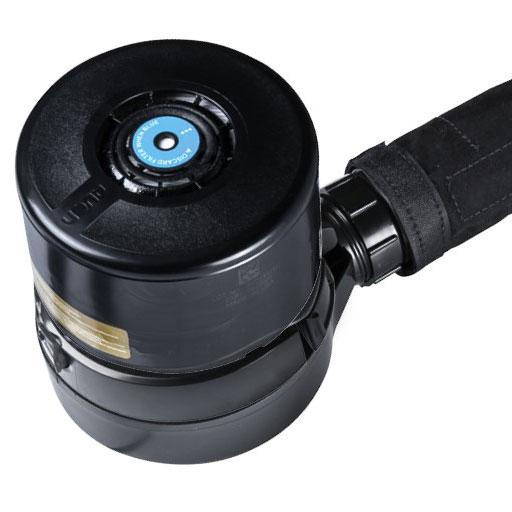

Avon EZAir® is the newest generation of single filter airflow system, substantially smaller and lighter than traditional powered air units. Avon EZAir also provides the power source for all configurations of the AvonAir range.
Five years of research and development have resulted in the first CBRN air-system that delivers the benefits of a traditional Powered Air Device in a more compact and integrated system.
Modular methodology allows users to add Avon EZAir to existing fielded systems such as the 50 Series APR’s and convert into a two filter PAPR system for increased performance.
Avon’s EZAir continuous fresh airflow helps relieve the burden of heavy breathing enabling responders to easily communicate and reduce fatigue.
With fewer parts, Avon EZAir operational costs are up to 70% less than traditional airflow systems resulting in the lowest cost of ownership.
Increased operational time & Optimized Integration
- Integrated MOLLE panel and belt options
- S-Shape hose with crush proof technology delivers superior integration
Intelligent Control Systems
- Automatic flow control adjusts to filter type
- Low flow and battery alarms alert
- Dual speed function – automatically increases flow rate
Novel Material Technologies
- One size lightweight and flexible hose
- Crush proof hose with dual wall construction
- Military pedigree plastics used for superior resistance
Modular Upgrade Options
- Remote power switch for simple operation at the mask
- Combination hose allows for SCBA connection
- Flexible two filter PAPR module automatically adjusts flow rate of Avon EZAIR
| Blower Size | Height 70mm (2.75”) x Diameter 120mm (4.7”) | |
| Unit Weight (No battery or filter) | 0.64 kg (1.4 lbs) | |
| Unit Weight (No Filter (4xCR123) | 0.77 kg (1.7 lbs) | |
| Flow Rate | 60lpm controlled flow (120lpm when used with MPPAPR module) |
|
| Operational Noise @120lpm | <60 dBa | |
| Run time | CR123, Li-Ion Battery | 4+ hours |
| Li-Ion Rechargeable Battery | 8 hours | |
| Operational Temperature | -20°C & 49°C | -4°F & 120°F |
| Protection Factor APR | >2000 | |
| Alarms | Low Battery, High Resistance, Restricted Flow (all can be silenced) | |
| Construction | CBRN Hardened Butyl and Noryl | |
| Operation | Smart integrated power button on unit Remote power button on hose (optional) |
|
| Interface with APR | Crush proof hose with close fit 40mm (STANAG) APR connection, one size fits all | |
Type-examination approval: PPE Regulation 2016/425/EU – Module B: Certificate CE 684847
NIOSH Approved CBRN APR Statement of Standard and Title 42 CFR 84
TC-14G-0345 with C50
TC-14G-0346 with FM54
Avon EZAir certified in belt mount position only
Filter Data Sheets
Product Literature
Technical Documents
