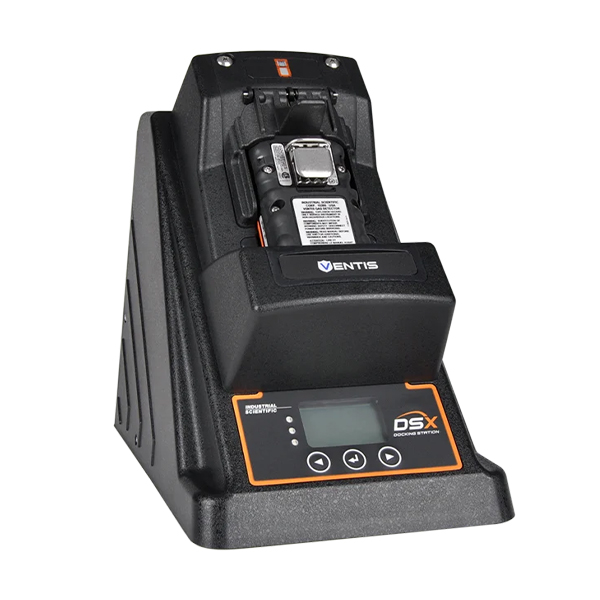

The DSX™ Docking Station is an automated gas monitor maintenance, record storage, and fleet management solution that flexes with the needs of your business. Choose from DSX-L Local Server, DSXi Cloud-connected, or DSX Standalone based on your data access requirements. All DSX Docking Stations offer automatic charging, bump testing, and calibration.
Streamline Gas Monitor Maintenance
- Easy bump testing and calibration of instruments upon docking.
- Bump test and calibration schedules can be tracked and performed automatically, ensuring that instruments are ready for use at the start of a shift.
- Free, automated software and firmware updates upon docking.
Get Data On-Demand
- Control and deploy company and application-specific instrument settings upon docking.
- Receive email alerts and notifications on worker exposure, instrument usage, and instrument service needs.
- In case of unexpected data loss, optional cloud-based data storage provides an automatic file back-up and easy recovery.
- Configure reports to provide the data you want, when you want it.
- On-demand printing of bump and calibration certificates provides hardcopy printouts for hot work and confined space entry.
Use Calibration Gas More Efficiently
- Auto detection of calibration gas type and expiration date upon cylinder connection.
- Calibration gas status indicators provide warning to order replacement gas before a cylinder is empty.
- Optional auto calibration gas replenishment program provides an efficient way to manage your calibration gas usage and needs — new cylinders will automatically be shipped to you when you need them.
| Instruments Supported |
| Ventis MX4, Ventis Pro Series, MX6 iBrid, Tango TX1, GasBadge Pro, SafeCore |
| Dimensions |
| GasBadge Pro, Tango TX1: 22.7 x 16.9 x 27.3 cm (8.92 x 6.65 x 10.75 in) |
| Ventis MX4, Ventis Pro Series: 24.9 x 16.9 x 27.3 cm (9.83 x 6.65 x 10.75 in) |
| MX6 iBrid: 25.3 x 16.9 x 27.3 cm (9.96 x 6.65 x 10.75 in) |
| SafeCore: 27.3 x 16.9 x 29.2 cm (10.75 x 6.65 x 11.5 in) |
| Gas Inlets |
| 3-Port Version: One ”fresh” air port, two calibration gas ports |
| 6-Port Version: One ”fresh” air port, five calibration gas ports (for Ventis, MX6 iBrid, and SafeCore only) |
| Pump Flow Rate |
| 1.2 SCFH (550 mL/min) |
| Communication |
| 10/100 Ethernet support, RJ-45 Category 5 Connection |
| Display |
| 128 x 64 Dot Matrix LCD – Multilingual modes |
| English, Spanish, French, German and Portuguese |
| Operating Temperature Range |
| 0 ºC to 50 ºC / 32 ºF to 122 ºF |
| Operating Humidity Range |
| 0% to 80% relative humidity (RH) up to 30 ºC (86 ºF), decreasing linearly to 50% RH at 50 ºC (122 ºF) |
| External Power Supply Ratings |
| Supply voltage: 100-240 VAC/12 VDC |
| Frequency range: 50-60 Hz / Current rating: 5A |
