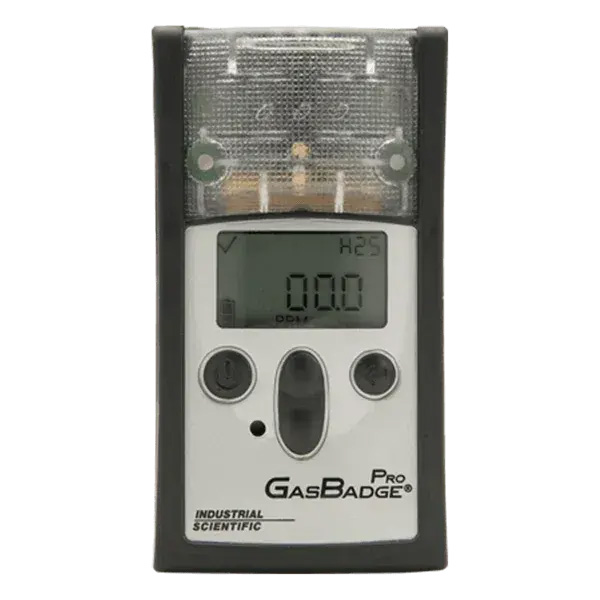

Built to Industrial Scientific’s highest quality and reliability standards, GasBadge® Pro provides a lifetime of gas hazard protection with more features than any other single gas monitor available. Interchangeable “smart” sensors enable the GasBadge Pro to be quickly adapted to monitor unsafe levels of oxygen or any one of the following toxic gases: carbon monoxide, hydrogen sulfide, nitrogen dioxide, sulfur dioxide, chlorine, chlorine dioxide, phosphine, ammonia, hydrogen cyanide and hydrogen.
GasBadge Pro communicates directly via an infrared interface to optional accessories like the DSX Docking Station, Datalink and infrared printer to further simplify and automate calibration, function (bump) testing and data downloading. Standard STEL and TWA readings, and datalogging of up to one year of survey data are featured along with an event-logger that records the past 15 alarm events.
Housed in a rugged enclosure, the monitor is immune to RF, water resistant and extremely durable. A protective concussion-proof overmold protects the unit from extreme abuse in a variety of harsh industrial environments. It’s simple and intuitive four-button navigation allows easy access to setup, operation and calibration functions.
Highlights
- Interchangeable “smart” sensors monitor oxygen or any one of many toxic gases
- One-year data logging capacity (minimum)
- Standard STEL and TWA
- iNet® ready and DSXTM Docking Station compatible
| Instrument Specifications |
| Case |
Rugged, water-resistant polycarbonate shell with protective concussion-proof overmold. RFI resistant |
| Dimensions |
9.4 x 5.08 x 2.79 mm (3.7 x 2 x 1.1 in) |
| Weight |
85 g (3 oz) |
| Sensors |
CO, H2S, O2, NO2, SO2, NH3, CI2, CIO2, PH3, HCN, H2, CO/H2 Low |
| Display |
Custom LCD with graphical icons for easy use; Segmented display for direct gas readings; Backlight for low light conditions; “Go/No Go” display mode; Peak reading indication |
| Alarms |
User selectable low and high alarms. Ultra-bright LEDs, loud audible alarm (95 dB) and vibrating alarm |
| Battery Run Time |
User replaceable 3V, CR2 Lithium battery, 2,600 hour run time, typical |
| Data Logging |
1 year continuous storage of data |
| Event Logger |
Continually on. Logs last 15 alarm events, stamping how long ago the event occurred, the duration of the event, and the peak reading seen during the event. Event-logger can be viewed on PC or printed directly from the instrument to an infrared printer. |
| Temperature Range |
-40 oC to 60 oC (-40 oF to 140 oF), typical |
| Humidity Range |
0% to 99% RH (non-condensing), typical |
| IP Rating |
Third-party certified IP64 |
| Measuring Ranges |
| CO/td>
| 0-1,500 ppm in 1 ppm increments |
| CO/H2 low |
0-1,500 ppm in 1 ppm increments |
| H2S |
0-500 ppm in 0.1 ppm increments |
| O2 |
0-30% by vol in 0.1% increments |
| NO2 |
0-150 ppm in 0.1 ppm increments |
| SO2 |
0-150 ppm in 0.1 ppm increments |
| NH3 |
0-500 ppm in 1 ppm increments |
| Cl2 |
0-100 ppm in 0.1 ppm increments |
| ClO2 |
0-1 ppm in 0.01 ppm increments |
| PH3 |
0-10 ppm in 0.01 ppm increments |
| HCN |
0-30 ppm in 0.1 ppm increments |
| H2 |
0-2,000 ppm in 1 ppm increments |
| Certifications |
| ANZEx |
Ex ia I/IIC T4 |
| ATEX |
Ex ia I/Ex ia IIC T4; Equipment Group/Category I M1/II 1G |
| China Ex |
Ex ia I/IIC T4 |
| CMA |
Ex ia I |
| CSA |
Cl I, Gr A-D, T4; Ex ia IIC T4 |
| KC |
Ex ia I/IIC T4 |
| IECEx |
Ex ia I/IIC T4 |
| INMETRO |
Ex ia IIC T4 |
| UL |
Cl I, Div 1, Gr A-D, T4; Cl II, Gr E-G |
