Radius BZ1

Brand: Industrial Scientific

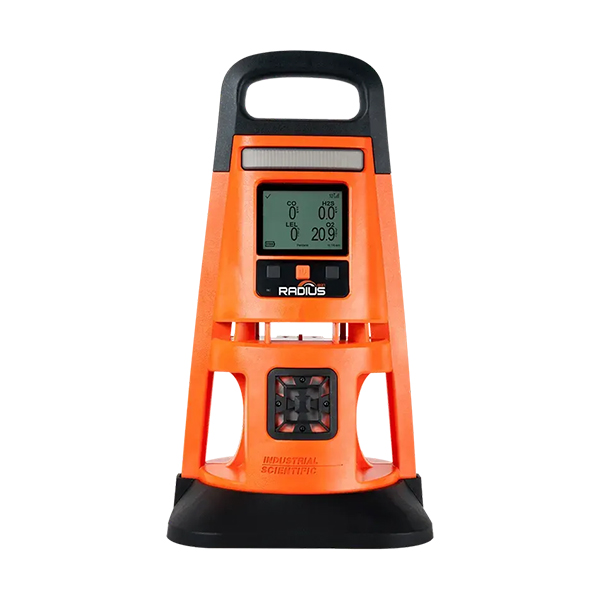

Industrial Scientific Radius BZ1 Area Monitor

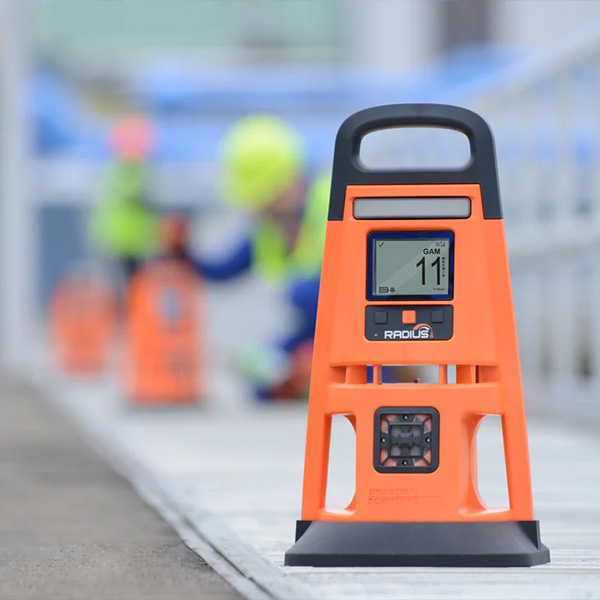

Industrial Scientific Radius BZ1 Area Monitor on sidewalk

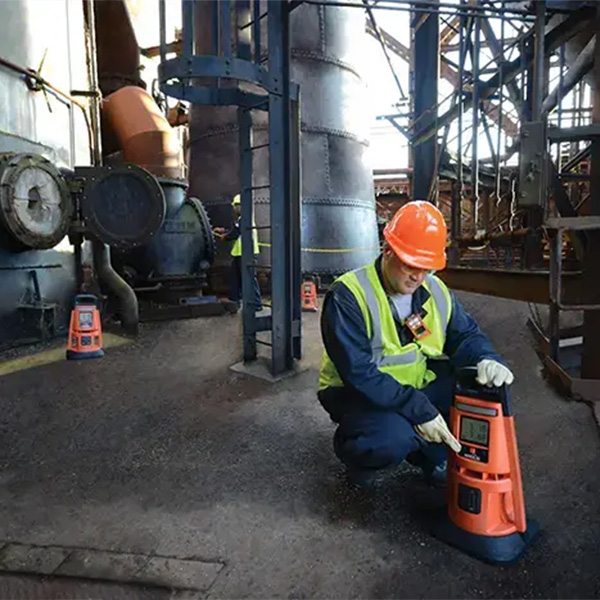

Industrial Scientific Radius BZ1 Area Monitor in industrial complex

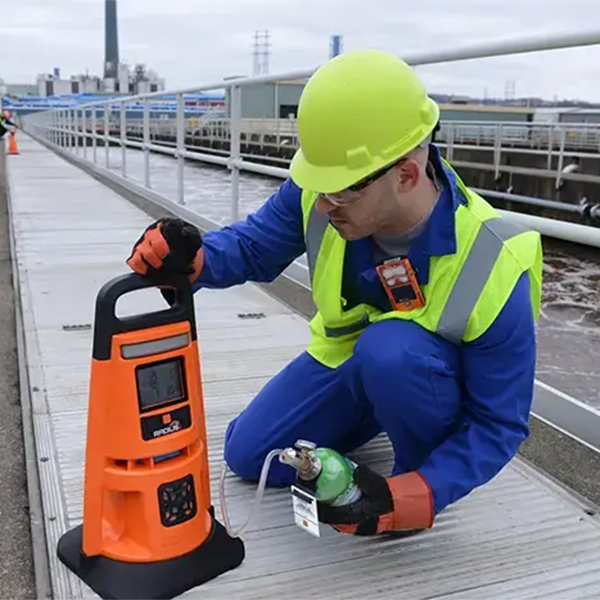

Industrial Scientific Radius BZ1 Area Monitor on sidewalk set up by worker

Area Monitor

Protect worksites with the Industrial Scientific Radius® BZ1, delivering rugged area gas monitoring, real time alerts, and unmatched situational awareness.

Key Features:

  • Detect Up to 7 Hazards
  • Increase Worker Safety
  • Customize Alarm Messages
  • Detect Gamma Radiation in Real Time
  • Built for Real-world Deployment

Ideal For:

  • Fire & Rescue
  • CBRNe & HazMat
  • State & Local Operations
  • Federal Government
  • Military

Get more information or request a quote on Industrial Scientific solutions from Safeware.

By submitting a request for quote, you are agreeing to allow emails and contact from Safeware, Inc.

Share This:

  • Description
  • Features
  • Specifications
  • Downloads

The Radius® BZ1 is a rugged, portable area monitor that’s always working, even when you’re not. This area monitor can be deployed for up to 75 days in the world’s harshest environments and features actionable alarms that can cut through even the busiest work areas. With local and remote monitoring options, everyone from teams nearby to off-site safety mangers will know exactly how to respond.

Detect Up to 7 Hazards



  • With Radius BZ1, you can detect up to seven hazards simultaneously with 24 sensor options, including PID, three types of LEL, and now gamma radiation.

Increase Worker Safety



  • DualSense® Technology uses two sensors to detect the same gas, bolstering your safety efforts.

Customize Alarm Messages



  • Know what’s happening at a distance with the largest display of any area monitor and customizable alarm action messages, such as “EVACUATE” or “VENTILATE.”

Command Attention



  • Cut right through high-noise environments with alarms that sound at 105 dB, plus bold LED lights.

Detect Gamma Radiation in Real Time



  • With a swappable SafeCore Module + gamma sensor, quickly identify elevated radiation levels and reduce equipment complexity—all while improving situational awareness for hazmat response and special events.

Extend Your Safety Network



  • Teams can share critical readings and alarms as well as make decisions faster with the capabilities of connected devices and iNet using LENS Wireless.

Built for Real-world Deployment



  • Designed for dynamic response environments, Radius BZ1 balances rugged durability with portability so teams can deploy trusted detection methods and adapt quickly as conditions change.

Reduce Operational Risk



  • The Radius BZ1’s runtime capabilities support continuous monitoring during large events and emergency response deployments without interruptions from battery swaps or device maintenance.
Keypad
Three Buttons
Data Log
At Least 3 Months at 10-Second Intervals
Event Logging
60 Alarm Events
Ingress Protection
IP66
Case Material
Impact-Resistant Polycarbonate Alloys
Dimensions
29 x 29 x 55 cm (11.5 x 11.5 x 21.5 in)
Weight
7.5 kg (16.5 lb)
Temperature Range
-20 °C to 55 °C (-4 °F to 131 °F)
Humidity Range
15% to 95% Non-Condensing (Continuous)
Display/Readout
11.2 cm (4.4 in) Monochrome Backlit Graphical Liquid Crystal Display (LCD)
Power Source/Run Time
Rechargeable Nickel-Metal Hydride (NiMH) Battery Pack
≤8 Hour Recharge Time
Alarms
105 Decibel (dB) at 1 m (3.3 ft) Redundant Audible Alarms
Redundant, Visual Alarm LEDs (Red and Blue)
Sensors
Up to 6 Sensors (Catalytic Bead, Photoionization Detector, Electrochemical, and
Infrared)
Up to 7 Simultaneous Readings
Certifications
INGRESS PROTECTION IP66
ATEX Ex da ia IIC T4 Ga, Equipment Group and Category II 1G II 2G
China EX Ex da ia IIC T4 Ga; Ex db ia IIC T4 Gb
CSA Cl I, Div 1, Gr A – D; Ex da ia IIC T4 Ga
C22.2 No. 152 Applies Only to %LEL Thermo-Catalytic Reading
IECEx Ex da ia IIC T4 Ga; Ex db ia IIC T4 Gb with IR Sensor
INMETRO Ex da ia IIC T4 Ga; Ex db ia IIC T4 Gb IR Sensor
KC Ex d ia IIC T4
UL Cl I, Div 1, Gr A-D, T4; Cl 1 Zone 0 AEx da ia IIC T4 Ga1
Measuring Ranges
CATALYTIC BEAD
Combustible Gases 0-100% LEL in 1% increments
ELECTROCHEMICAL
Ammonia (NH3) 0-500 ppm in 1 ppm increments
Carbon Monoxide (CO) 0-1,500 ppm in 1 ppm increments
Carbon Monoxide (CO High Range) 0-9,999 ppm in 1 ppm increments
Carbon Monozide (CO/H2 Low) 0-1,000 ppm in 1 ppm increments
Carbon Monoxide/Hydrogen Sulfide CO: 0-1,500 ppm in 1 ppm increments
H2S: 0-500 ppm in 0.1 ppm increments
Chlorine (CL2) 0-50 ppm in 0.1 ppm increments
Hydrogen (H2) 0-2,000 ppm in 1 ppm increments
Hydrogen Sulfide (H2S) 0-500 ppm in 0.1 ppm increments
Hydrogen Cyanide (HCN) 0-30 ppm in 0.1 ppm increments
Nitrogen Dioxide (NO2) 0-150 ppm in 0.1 ppm increments
Oxygen (O2) 0-30% vol in 0.1% increments
Sulfur Dioxide (SO2) 0-150 ppm in 0.1 ppm increments
Phosphine (PH3) 0-5 ppm in 0.01 ppm increments
Nitric Oxide (NO) 0-1,000 ppm in 1 ppm increments
Chlorine Dioxide (CLO2) 0-1 ppm in 0.01 ppm increments
Hydrogen Chloride (HCL) 0-30 ppm in 0.1 ppm increments
INFRARED
Carbon Dioxide (CO2) 0-5% vol in 0.01% increments
Hydrocarbon (HC) 0-100% LEL in 1% LEL increments
Methane (CH4) 0-100% LEL in 1% LEL increments
MOLECULAR PROPERTY SPECTROMETER
Combustible Gases 0-100% LEL in 0.1% increments
PHOTOIONIZATION
Volatile Organic Compounds (10.6 eV) 0-2,000 ppm in 0.1 ppm increments

Product Literature
