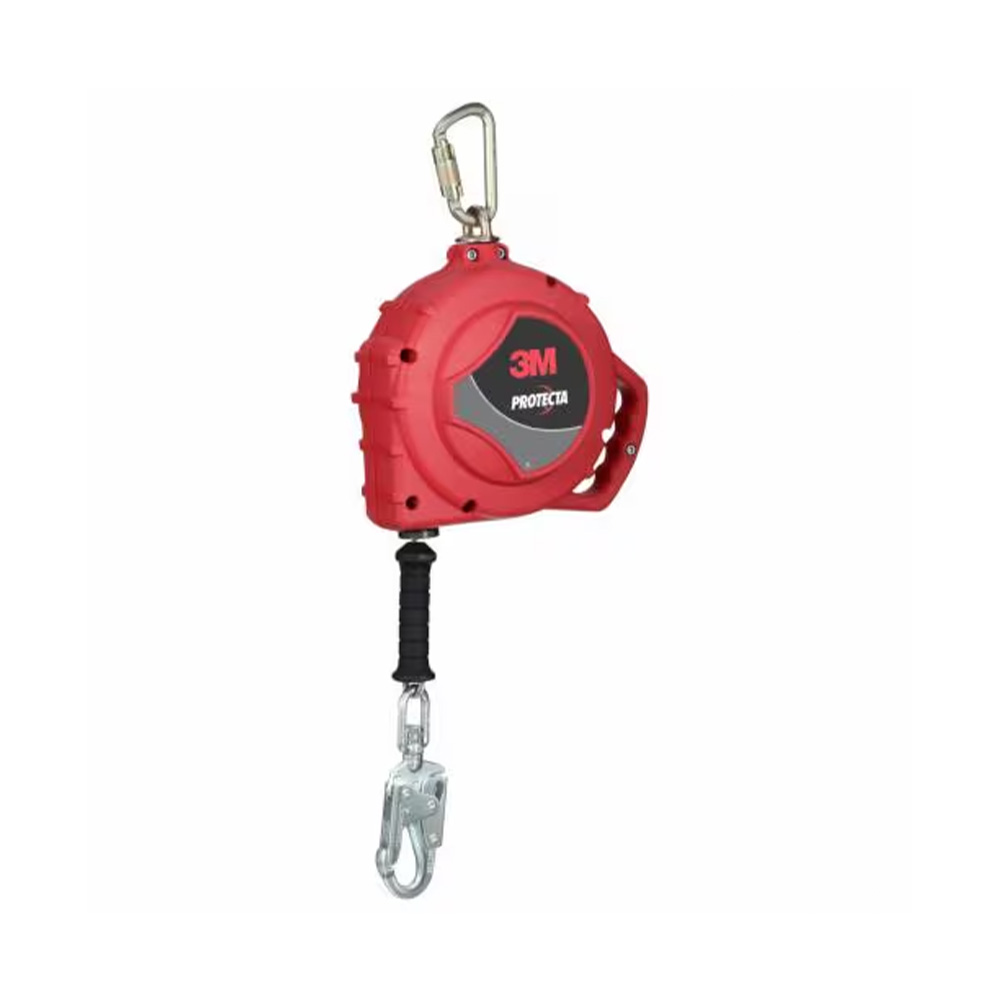

Protecta® Self-Retracting Lifeline

Brand: 3M, 3M Protecta
3M Protecta Self Retracting Lifeline

Self-Retracting Lifeline

Protect workers at height with the 3M Protecta Self Retracting Lifeline, delivering reliable fall protection, mobility, and dependable jobsite performance.

Key Features:

  •  Swiveling Anchorage Connector Loop
  •  Aluminum or Thermoplastic Housing Design
  •  Corrosion Resistant Components
  •  Reliable Fall Arrest Energy Dissipation System
  •  Quick Activating Speed-sensing Locking System

Ideal For:

  • Industrial
  • Public Services
  • Search & Rescue
  • Confined Space Rescue
  • Fire

Get more information or request a quote on 3M solutions from Safeware.

By submitting a request for quote, you are agreeing to allow emails and contact from Safeware, Inc.

Share This:

  • Description
  • Features
  • Specifications

The 3M™ Protecta® Self-Retracting Lifeline (SRL) is durable yet lightweight and built to last while providing an economical fall protection solution without compromising performance or safety. The 3M™ Protecta® Self-Retracting Lifeline is available in multiple lifeline lengths and materials featuring a design to help ensure longevity. The 3M™ Protecta® Self-Retracting Lifeline is designed with the worker in mind, featuring a stackable housing design, with web or steel cable lifeline and a built-in swiveling anchorage point for added comfort and ease of use. 3M™ Protecta® Self-Retracting Lifelines are available in SRL, personal SRL, Leading Edge SRL, and Retrieval SRL configurations.

The 3M™ Protecta® Self-Retracting Lifeline (SRL) extends and retracts with the user as they perform their work task. Should a fall occur, a speed sensing brake system activates, stopping the fall and reducing the forces imposed on the user to safe levels. In addition, tension is always kept on the lifeline, which helps reduce dragging, snagging, trips, and falls. Whether the application requires single or twin leg configurations, mounting to an overhead anchor, or for connection directly to harness, there are several models to choose from to suit a variety of applications. 3M™ Protecta® Self-Retracting Lifeline is equipped with an integrated carrying handle to assist in transporting the SRL to job sites.

Highlights



  • Swiveling anchorage connector loop
  • Compact, lightweight design
  • Features impact-indicating external energy absorber (for models with external shock pack)
  • Emergency retrieval system available on some models
  • Aluminum or thermoplastic housing design
  • Cable lengths of 20 ft (6 m) or greater feature stackable housing design
  • Corrosion resistant components
  • Reliable fall arrest energy dissipation system
  • Self-locking snap hook on lifeline
  • Quick activating speed-sensing locking system
  • Available in multiple configurations, lifeline lengths, and material types
Details
Anchor Connection Type Carabiner
Anchor Hook Material Zinc Plated Steel
Anchor Hook Material Zinc Plated Steel
Average Arrest Force (Imperial) 1125 lbf (OSHA 130 lb – 310 lb), 1350 lbf (ANSI 130 lb – 310 lb)
Average Arrest Force (Metric) 5 kN (OSHA 130 lb – 310 lb), 6 kN (ANSI 130 lb – 310 lb)
Brands PROTECTA®
Connected Safety ID Equipped No
Harness Connection Hook Material Zinc Plated Steel
Harness Connection Type Single Pin Connector
Housing Material Aluminum, Nylon Thermoplastic, Thermoplastic
Install Type Portable & Removable, Removable
Leg Count Single-Leg, Twin-Leg
Lifeline Connection Type Rebar Snap Hook, Snap Hook, Swivel Snap Hook
Lifeline Hook Material Aluminum, Zinc Plated Steel
Lifeline Length (Imperial) 6 ft, 11 ft, 20 ft, 33 ft, 50 ft, 66 ft, 85 ft, 100 ft
Lifeline Length (Metric) 1.83 m, 3.35 m, 6.09 m, 6.1 m, 10.1 m, 15.2 m, 20 m, 20.1 m, 26 m, 30 m
Lifeline Material Galvanized Cable, Stainless Steel Cable, Web
Maximum Arrest Force (Imperial) 1800 lbf (ANSI), 1800 lbf (OSHA up to 420 lb), 1350 lbf (OSHA 130 lb – 310 lb), 1800 lbf (OSHA 130 lb – 310 lb)
Maximum Arrest Force (Metric) 8 kN (ANSI), 8 kN (OSHA up to 420 lb), 6 kN (OSHA 130 lb – 310 lb), 8 kN (OSHA 130 lb – 310 lb)
Maximum Number of Users One
Mounting Type Block to Anchor Point, Overhead Anchor Point
Product Color Red
Product Type Self Retracting Lifeline – Cable, Self Retracting Lifeline – Retrieval, Self Retracting Lifeline – Retrieval with Bracket, Self Retracting Lifeline – Web, Twin-Leg Self Retracting Lifeline – Web
Recommended Application Assembly, Blasting, Cleaning, Climbing, Confined Space, Decking, Demolition, Facility Maintenance, General Industrial, Inspection, Leading Edge, Maintenance, Remediation, Welding
Recommended Industry Construction, General Industry, General Manufacturing, Industrial, Maintenance, Manufacturing, Military Maintenance, Repair & Operation (MRO), Mining, Oil & Gas, Transportation, Utilities, Wind Energy
Smallest Saleable Unit Each
Specifications Met ANSI Class Level 1, ANSI Class Level 2, ANSI/ASSP Z359.14-2021, 29 CFR OSHA 1910.140, 29 CFR OSHA 1926.502



Dimensions and Classifications
Overall Length (Imperial) 6 ft, 11 ft, 20 ft, 33 ft, 50 ft, 66 ft, 85 ft, 100 ft
Overall Length (Metric) 1.83 m, 3.35 m, 6.09 m, 6.1 m, 10.1 m, 15.2 m, 20 m, 20.1 m, 26 m, 30 m
Weight Capacity (Imperial) 310 lb, 420 lb
Weight Capacity (Metric) 140 kg, 141 kg, 190 kg
Working Length (Imperial) 64 , 82.9 , 96.4
Working Length (Metric) 19.5 , 25.3 , 29.4
