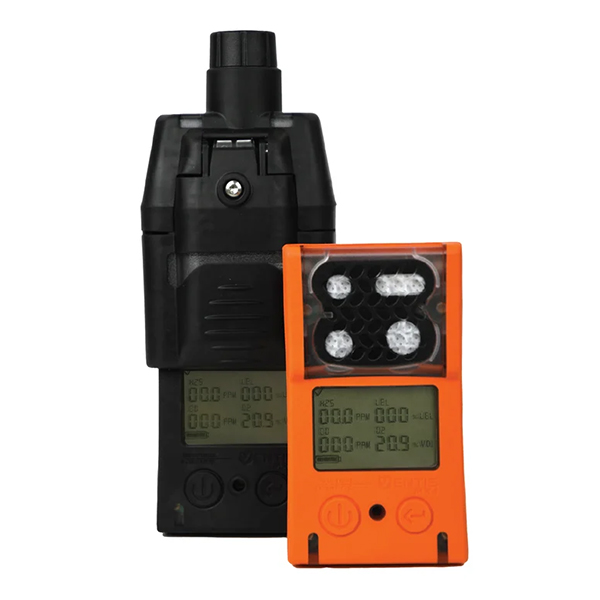

The Ventis® MX4 is a four-gas monitor with the portability and size of a single-gas monitor. Eliminate the need for extra monitors and transition seamlessly from personal monitoring to confined space entry with the Ventis® Slide-on Pump—
ideal for operators who wear their gas monitors primarily for personal protection but occasionally require a pump for confined space entries.
Highlights
- Detect up to four gases with a wide range of sensor options
- Select alarm set points, set latch alarms, disable instrument shutdown while in alarm, and more
- Save time and reduce human error with maintenance and usage data available from iNet Control software
- Available with or without an integral pump, or with the Ventis Slide-on Pump for ultimate flexibility
- Non-pumped instruments compatible with 12-hour, 18-hour, or 20-hour batteries
| Case Material |
| Polycarbonate with protective rubber overmold |
| Dimensions |
| 103 x 58 x 30 mm (4.1 x 2.3 x 1.2 in) without pump, lithium-ion battery version |
| 172 x 67 x 66 mm (6.8 x 2.6 x 2.6 in) with pump, lithium-ion battery version |
| Weight |
| 182 g (6.4 oz) without Pump, lithium-ion battery version |
| 380 g (13.4 oz) with Pump, lithium-ion battery version |
| Power Source/Run Time |
| Rechargeable slim extended lithium-ion battery |
(18 hours typical @ 20 oC) without Pump |
| Rechargeable lithium-ion battery |
(20 hours typical @ 20 oC) without Pump |
| (12 hours typical @ 20 oC) with Pump |
| Replaceable AAA alkaline battery |
(8 hours typical @ 20 oC) without Pump |
| (4 hours typical @ 20 oC) with Pump |
| Alarms |
| Ultra-bright LEDs, loud audible alarm (95 dB at 30 cm) and vibrating alarm |
| Display/Readout |
| Backlit liquid crystal display (LCD) |
| Temperature Range |
| -20 °C to 50 °C (-4 °F to 122 °F) |
| Humidity Range |
| 15% to 95% Non-condensing (continuous) |
| Sensors |
| Combustible gases/methane – Catalytic Bead |
| O2, CO, CO/H2 low, H2S, NO2, SO2 – Electrochemical |
| Measuring Ranges |
| Combustible Gases |
0-100% LEL in 1% increments |
| Methane (CH4) |
0-5% of vol in 0.01% increments |
| Oxygen (O2): |
0-30% of vol in 0.1% increments |
| Carbon Monoxide (CO/H2 low): |
0-1,000 ppm in 1 ppm increments |
| Carbon Monoxide (CO) |
0-1,000 ppm in 1 ppm increments |
| Hydrogen Sulfide (H2S) |
0-500 ppm in 0.1 ppm increments |
| Nitrogen Dioxide (NO2) |
0-150 ppm in 0.1 ppm increments |
| Sulfur Dioxide (SO2) |
0-150 ppm in 0.1 ppm increments |
| Certifications |
| INGRESS PROTECTION IP66/67 |
| ANZEx |
Ex ia s Zone 0 I/IIC T4 |
| ATEX |
Ex ia IIC T4 Ga and Ex ia I Ma; Equipment Group and Category II 1G/I M1 |
| China CMC |
Metrology approval |
| China CPC |
CPA 2017-C103 |
| China Ex |
Ex ia IIC T4 Ga; Ex ia d I Mb |
| China KA |
Approved for Underground Mines with CO, H2S, O2 and CH4 |
| China MA |
Approved for Underground Mines with CO, H2S, O2 and CH4 (Note: Diffusion 17144453 pack only) |
| CSA |
Cl I, Div 1, G A-D, T4; Ex d ia IIC T4 |
| EAC |
PB Ex d ia I X/1Ex d ia IIC T4 X |
| IECEx |
Ex ia IIC T4 Ga |
| INMETRO |
Ex ia IIC T4 Ga |
| KC |
Ex d ia IIC T4 |
| KIMM |
Ex d ia IIC T4 |
| MSHA |
30 CFR Part 22; Permissible for underground mines; Li-ion |
| PA-DEP |
BFE 46-12 Permissible for PA Bituminous Underground Mines; Charger/docking station accessories; Category 1 |
| SANS |
SANS 1515-1; Type A; Ex ia I/IIC T4; Li-ion |
| TIIS |
Ex ia IIC T4 X |
| UL |
Cl I, Div 1, Groups A-D, T4; Zone 0, AEx ia IIC T4; Cl II, Gr F-G (Carbonaceous and Grain dust) |
