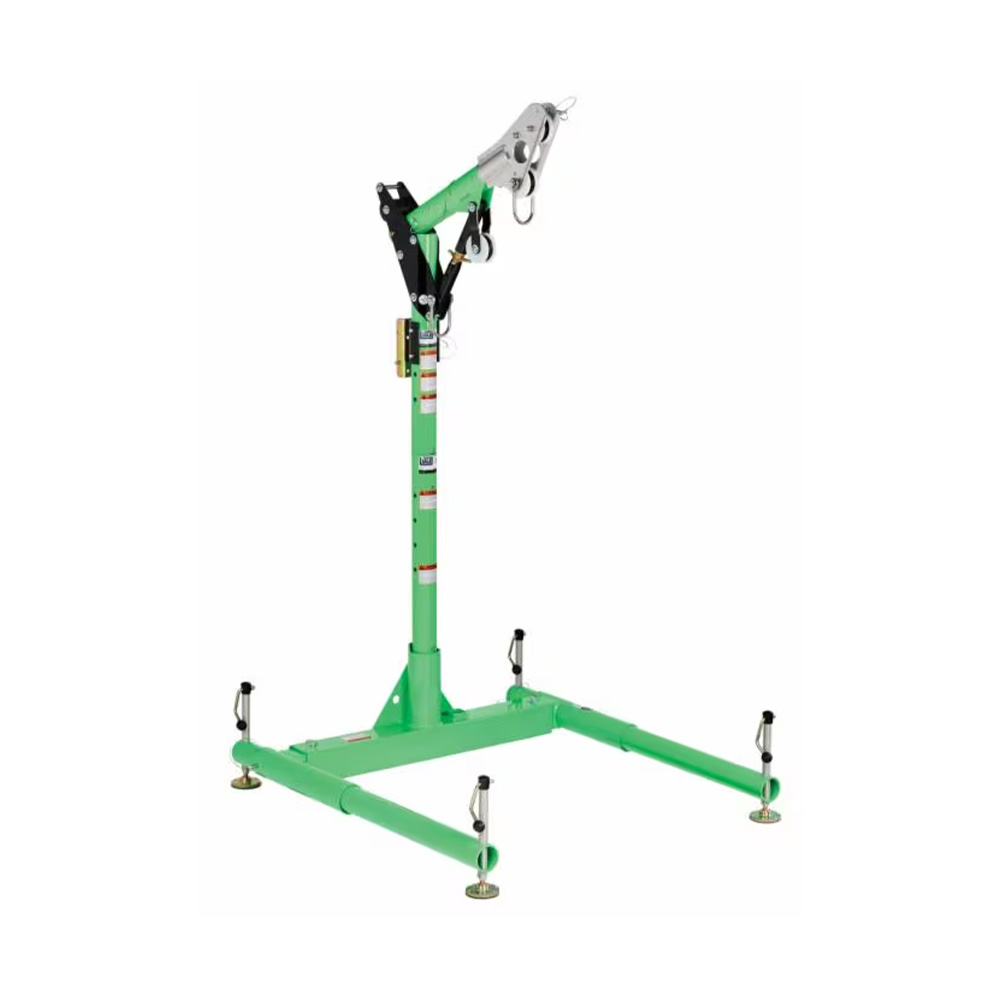

DBI-SALA® Confined Space 5-Piece Short/Long Reach Davit System

Self-Retracting Lifeline

Protect confined space crews with the 3M DBI SALA Davit System, delivering reliable access, rescue support, and durable performance on demanding jobs.

Key Features:

  •  Integrated 5,000 lb. (22 kN) Mast Anchorage Point
  •  Adjustable Foot-Leveling System
  •  Built-In Level Indicator
  •  Fall Arrest Rated In All Davit Offset Mast Positions
  •  Easy to Set-Up & Dismantle Without Tools

Ideal For:

  • Industrial
  • Public Services
  • Search & Rescue
  • Confined Space Rescue
  • Fire

Get more information or request a quote on 3M solutions from Safeware.

Share This:

  • Description
  • Features
  • Specifications

3M™ DBI-SALA® Confined Space 5-Piece Davit Hoist System is a system designed for manhole and confined space entry and retrieval applications. Built durable with lightweight materials including high-strength aluminum, the davit pivots for better rescue angles, and can easily adjust for overhead clearance restrictions.

The davit hoist system is a superior performer when spaces are difficult to access. Fall arrest rated in all positions, the davit system allows for easy access in confined spaces. Maximizing safety and accessibility, it makes sense that safety pros rely on it for rescue and reliable fall protection.

With adjustable height and width options, the davit hoist system can be customized to meet the needs of the toughest jobs. Top-quality confined-space retrieval system comes equipped with an integrated 5,000 lb. (22 kN) mast anchorage point and can accommodate up to two extensions. An integrated foot level allows workers to adjust each side of the hoist system independently to easily level the system over confined spaces.

Successful entry and retrieval requires a hoist system that pros and engineers can trust. Portable and adjustable, with a unique foot level, workers depend on this davit hoist system to lift and lower precious cargo in the field, on the road, or in the mine.

Highlights



  • Integrated 5,000 lb. (22 kN) mast anchorage point
  • Durable aluminum construction
  • Recommended for use in many industries
  • Fall arrest rated in all davit offset mast positions
  • Adjustable foot-leveling system
  • Built-in level indicator
  • Adjustable mast height and base width
  • Available in two extension ranges: 11.5 in. to 27.5 in. (29.2 cm to 69.8 cm), and 23.5 in. to 42.5 in. (59.7 cm to 108 cm)
  • Easy to set-up and dismantle without tools
Details
Brands DBI-SALA®
Case Quantity 1
Connected Safety ID Equipped No
Maximum Arrest Force One Person (Imperial) 1500 lbf
Maximum Arrest Force One Person (Metric) 6 kN
Maximum Arrest Force Two Person (Imperial) 1350 lbf
Maximum Arrest Force Two Person (Metric) 6 kN
Maximum Height (Imperial) 100.1 in, 110.4 in
Maximum Height (Metric) 254.2 cm, 280.5 cm
Minimum Height (Imperial) 80.4 in, 87.5 in
Minimum Height (Metric) 204.2 cm, 222.3 cm
